PIC16F767-I/SP MICROCHIP

PIC16F767-I/SP Microchip Flash microcontroller, 28-pin dual in line - 25 Input/Output ports - 3 PWM modules - 8k Flash program memory.

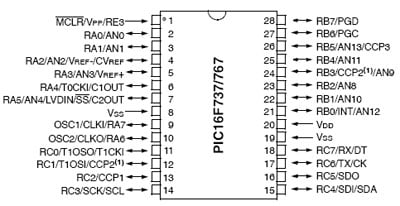

PIC16F767-I/SP MICROCHIP - Image 1

SKU 1340-PIC16F767-I/SPEAN 8219671001199Item type: Assembled

Description

PIC16F876 Microchip IC
PIC16F767-I/SP Microchip Flash microcontroller, 28-pin dual in line – 25 Input/Output ports – 3 PWM modules – 8k Flash program memory.
TECHNICAL SPECIFICATIONS
  • 10-bit Analog-to-Digital Module: 11
  • 8/10-bit timers: 2/1

Technical details

Package 28-pin plastic Dual in line
Number of INPUT/OUTPUT 25 (Ports A, B, C)
Supply voltage 4 to 5.5Vdc
Flash Program Memory (14-bit words) 8k
Data Memory (bytes) 368
INTERRUPTS 16
Frequency 20 MHz
In-Circuit Serial Programming (ICSP) yes
Number of instructions 35
Comparators 2
Capture/Compare/PWM Modules 3
Master Synchronous Serial Port (MSSP) 3-wire SPI and I2C (Master and Slave) modes
