PIC18F1320-I/SS Microchip Microcontroller – 20-pin SMD

PIC18F1320-I/SS Microchip Flash microcontroller, 20-pin SMD - 16 Input/Output ports - 8k Flash program memory - 7 10-bit analogue/digital converters.

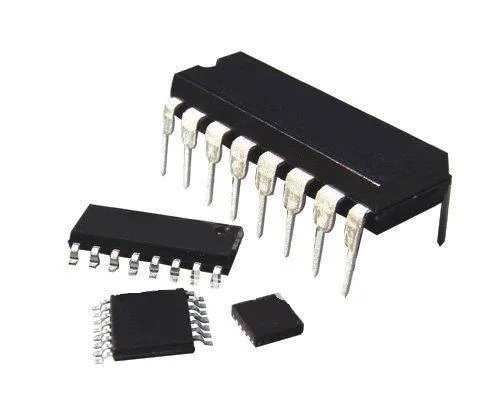

PIC18F1320-I/SS Microchip Microcontroller - 20-pin SMD - Image 1

SKU 1340-PIC18F1320-I/SSEAN 8219671001359Item type: Assembled

Description

PIC18F1320-I/SS Microchip Flash microcontroller, 20-pin SMD – 16 Input/Output ports – 8k Flash program memory – 7 10-bit analogue/digital converters.
 TECHNICAL SPECIFICATIONS
  • In-Circuit Serial Programming™ (ICSP™): via two pins
  • Timer: 4 x 8/16-bit

Technical details

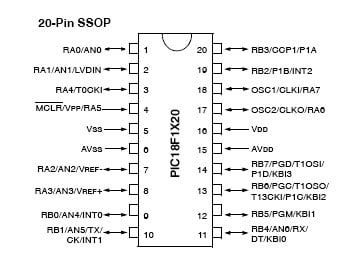

Package 20-pin SSOP 208mil
Supply 2 to 5.5 Vdc
Input/output ports 16 (A and B)
Flash Program Memory 8 k
Single-Word Instructions 4096
SRAM (bytes) 256
EEPROM (bytes) 256
Interrupt sources 15
Oscillator Crystal max. 25 MHz
Number of instructions 75
A/D Converter 7 x 10-bit
Enhanced Capture/Compare/PWM module 1
Extended Watchdog Timer (WDT) programmable period from 41 ms to 131s
In-Circuit Debug (ICD) via two pins
