PIC18F2420-I/SO Microchip SMD microcontroller

PIC18F2420-I/SO Microchip Flash SMD microcontroller, 28 pins - 16k Flash program memory - 25 I/O ports - 4 timers - 2 comparators - 2 CCP modules.

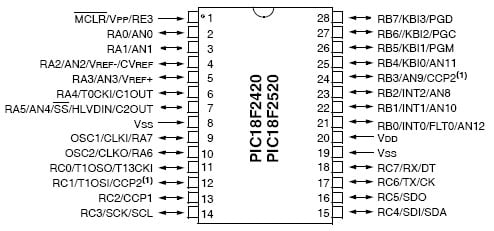

PIC18F2420-I/SO Microchip SMD microcontroller - Image 1

SKU 1340-PIC18F2420-I/SOEAN 8219671003445Item type: Assembled

Description

PIC18F2420-I/SO Microchip Flash SMD microcontroller, 28 pins – 16k Flash program memory – 25 I/O ports – 4 timers – 2 comparators – 2 CCP modules.
TECHNICAL SPECIFICATIONS
  • 10-bit A/D converter: 10
  • 8-bit timers: 1
  • 16-bit timers: 3

Technical details

Package SOIC 28-pin
Supply voltage 2 to 5.5 Vdc
Clock frequency max. 40 MHz
Input/Output 25 ports (Ports A, B, C, E)
Program Memory FLASH (bytes) 16k
SRAM (bytes) 768
Data EEPROM Memory (Bytes) 256
Instruction set size 75
Capture/Compare/PWM modules 2
EUSART 1
Serial Communications MSSP, Enhanced USART
Interrupt Sources 19
Comparators 2
