PIC18F442-I/P MICROCHIP

Microchip Flash microcontroller, 40-pin DIP, 16 K Flash program memory.

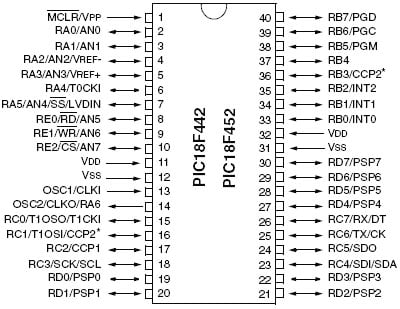

PIC18F442-I/P MICROCHIP - Image 1

SKU 1340-PIC18F442-I/PEAN 8219671007559Item type: Assembled

Description


Microchip Flash microcontroller, 40-pin DIP, 16 K Flash program memory.
TECHNICAL SPECIFICATIONS
  • I/O ports: Port A, B, C, D, E
  • 10-bit analogue-to-digital module: 8 input channels
  • RESETS (and Delays): POR, BOR, RESET Instruction, Stack Full, Stack Underflow (PWRT, OST)

Technical details

Operating frequency 40 MHz
Program memory (Bytes) 16K
Program memory (instructions) 8192
Data Memory (Bytes) 768
Data EEPROM Memory (Bytes) 256
Interrupt Sources 18
Timers 4
Capture/Compare/PWM modules 2
Serial communication MSSP, Addressable USART
Parallel communication PSP
Programmable Low Voltage Detect yes
Programmable Brown-out Reset yes
Instruction set 75
Case 40-pin DIP
