PIC18F452-I/P Microchip microcontroller

PIC18F452-I/P Microchip 8-BIT FLASH microcontroller 32KB – 40 PIN.
PIC18F452-I/P Microchip microcontroller - Image 1

SKU 1340-PIC18F452-I/PEAN 8219671007566Item type: Assembled

Description

PIC18F452-I/P Microchip 8-BIT FLASH microcontroller 32KB – 40 PIN.
TECHNICAL SPECIFICATIONS
  • RESETS (and Delays): POR, BOR, RESET Instruction, Stack Full, Stack Underflow (PWRT, OST)

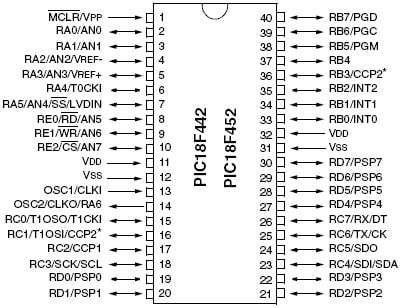

  • Package: plastic dual in line 40-pin

Technical details

Operating frequency DC - 40 MHz
Program memory (bytes) 32K
Program memory (instructions) 16384
Data memory (bytes) 1536
Data EEPROM memory (bytes) 256
Interrupt Sources 18
I/O ports A, B, C, D, E
Timers 4
Capture/Compare/PWM modules 2
Serial communication MSSP, Addressable, USART
Parallel communication PSP
Programmable Low Voltage Detect yes
Programmable Brown-out Reset yes
Number of instructions 75
