PIC18F4550-I/PT

PIC18F4550-I/PT Microchip Flash SMD microcontroller, 44-pin TQFP - 16k Flash program memory - USB port.
PIC18F4550-I/PT - Image 1

SKU 1340-PIC18F4550-I/PTEAN 8219671001540Item type: Assembled

Description

PIC18F4550-I/PT Microchip Flash SMD microcontroller, 44-pin TQFP – 16k Flash program memory – USB port.
 TECHNICAL SPECIFICATIONS

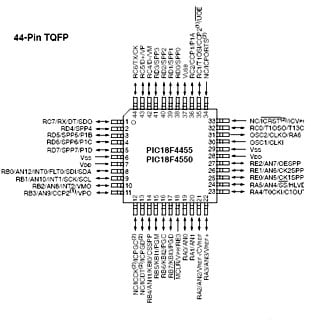

▪ TQFP 44-pin package
▪ Supply voltage from 2 to 5.5Vdc
▪ 33 Input/Output ports (A, B, C, D, E)
▪ Flash Program Memory 16k
▪ RAM memory 2048
▪ EEprom Data Memory: 256
▪ Interrupt sources: 20
▪ Oscillator: crystal, max. 48MHz
▪ Serial In-Circuit programming
▪ Number of instructions: 75
▪ 1 USB module
▪ 13 10-bit A/D converters
▪ 3 16-bit timers – 1 8-bit timer
▪ 1 Capture/Compare/PWM module
▪ 1 Enhanced Capture/Compare/PWM module
▪ Serial Communications: MSSP, Enhanced USART
▪ Streaming Parallel Port (SPP)
