PIC18F46K20-I/P MICROCHIP

Microchip microcontroller with 36 Input/Output ports, 64 KB Flash program memory, 3936 byte SRAM, 2 comparators, 4 timer modules (1 x 8-bit, 3 x 16-bit), 1 Capture/Compare/PWM, 1 Enhanced Capture/Compare/PWM, 40-pin DIP case.

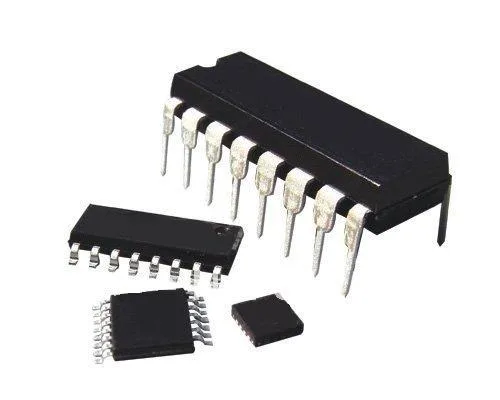

PIC18F46K20-I/P MICROCHIP - Image 1

SKU 1340-PIC18F46K20-I/PEAN 8219671004916Item type: Assembled

Description

Microchip microcontroller with 36 Input/Output ports, 64 KB Flash program memory, 3936 bytes SRAM, 2 comparators, 4 timer modules (1 x 8-bit, 3 x 16-bit), 1 Capture/Compare/PWM, 1 Enhanced Capture/Compare/PWM, DIP 40-pin case.

Technical Specifications

  • 10-bit Analog/Digital Converter inputs: 13

Technical details

Case plastic Dual in line 40 pin
Power supply from 1.8 to 3.6 Vdc
Input/Output ports 36 (Port A, B, C, D, E)
Flash program memory 64 KB
SRAM memory 3936 bytes
EEPROM memory 1024 bytes
Interrupt sources 20
Number of instructions 75
Comparators 2
Timer modules 1 x 8-bit, 3 x 16-bit
Capture/Compare/PWM 1
Enhanced Capture/Compare/PWM 1
Serial communication MSSP, Enhanced USART
Parallel communication (PSP) yes
