PIC18F8723-I/PT Microchip microcontroller SMD 80 PIN

PIC18F8723-I/PT Microchip SMD microcontroller, 80 PIN - 128k Flash memory - 70 input/output ports - 16 12-bit A/D converters.

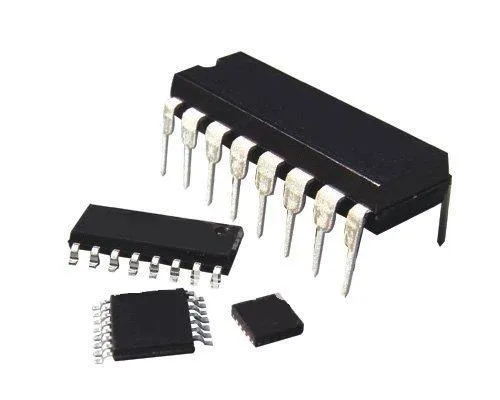

PIC18F8723-I/PT Microchip microcontroller SMD 80 PIN - Image 1

SKU 1340-PIC18F8723-I/PTEAN 8219671001564Item type: Assembled

Description

PIC18F8723-I/PT Microchip SMD microcontroller, 80 PIN – 128k Flash memory – 70 input/output ports – 16 12-bit A/D converters.
 TECHNICAL SPECIFICATIONS
  • Input/Output ports: 70 (A – B – C – D – E – F – G – H – J)
  • ECCP module (Enhanced Capture/Compare/PWM): 3

Technical details

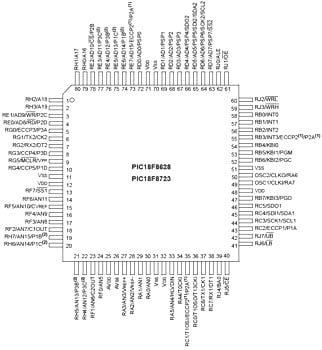

Package TQFP 80-pin
Supply voltage 2 to 5.5 Vdc
Flash Program Memory (Bytes) 128k
Program Memory (Instructions) 65536
Data Memory (Bytes) 3936
Data EEPROM Memory (Bytes) 1024
Interrupt sources 29
Operating Frequency DC – 40 MHz
Number of instructions 75
A/D converters 16, 12-bit
Timers 2 x 8-bit and 3 x 16-bit
CCP module (Capture/Compare/PWM) 2
Serial Communications MSSP, Enhanced USART
Parallel Communications (PSP) yes
