Polycrystalline solar panel 12 V – 20 W

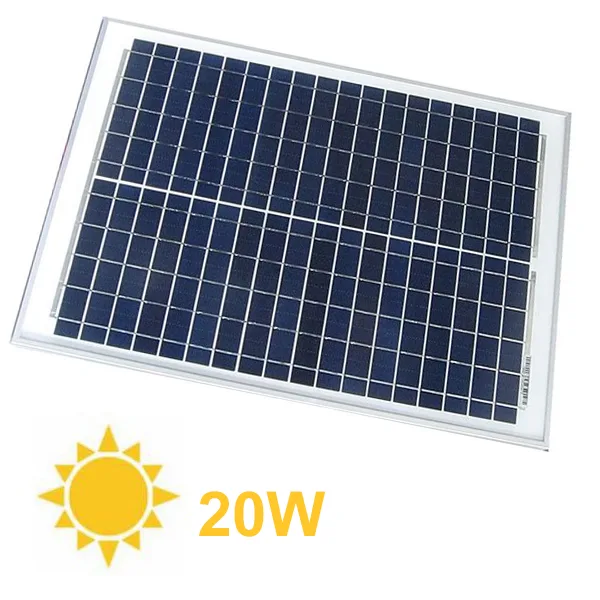

20 watt polycrystalline module with an aluminium frame, protected by tempered glass
SKU 8220-SOL20PEAN 5410329670726Item type: AssembledSolar panels
Description
20-watt polycrystalline solar panel with a sturdy aluminum frame and protected by weather-resistant tempered glass. With a peak power of 20 watts, a voltage at maximum power point of 17.6 volts, and a maximum current of 1.14 A, this solar module can generate clean, reliable energy to power small solar systems such as caravans, campers, lighting, and much more.

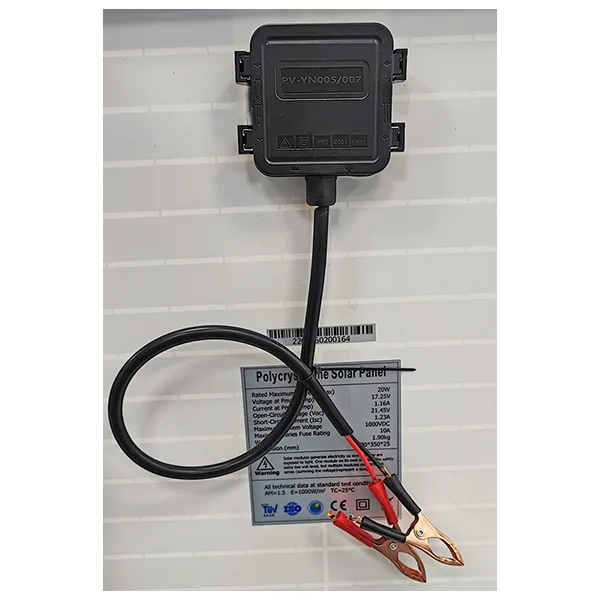

On the back of the solar panel there are two connection clamps, which allow it to be easily connected to other system components such as the inverter or battery. Its compact dimensions of 500x350x25 mm and light weight of 1.9 kg make it easy to install and transport.
Technical specifications
- Voltage at maximum power point (Vmp): 17.6 V
- Tempered glass
- Fitted with a sturdy aluminum frame
Technical details
| Type | polycrystalline silicon |
|---|---|
| Maximum system voltage | 1000 Vdc |
| Nominal voltage | 12 V |
| Peak power (Pmax) | 20 W |
| Peak current (Imp) | 1.14 A |
| Open-circuit voltage (Voc) | 21.56 V |
| Short-circuit current (Isc) | 1.23 A |
| Operating temperature | from -40°C to +85°C |
| Dimensions (mm) | 500 x 350 x 25 mm |
| Weight | 1.9 kg |
