Professional metal detector

Metal detector for finding metal objects underground

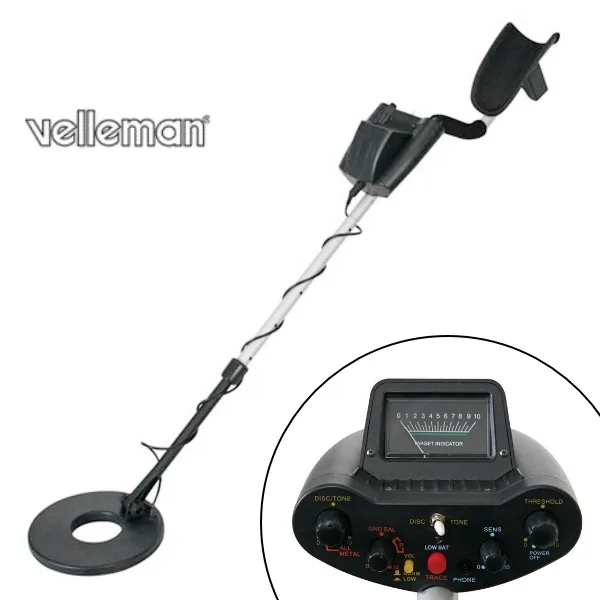

Professional metal detector - Image 1

SKU 8220-CS102EAN 5410329415334Brand: VellemanProduct type: Environmental & research instruments

Description

Metal detector capable of detecting the presence of metallic objects. Equipped with a waterproof 215 mm search coil, analog meter, discrimination of non-significant metal objects (notch function), audio tone discrimination, sensitivity control, ‘all metal’ mode capable of detecting all types of metals, headphone output, and low battery indicator. Adjustable shaft length.

Technical Specifications

  • DISC/TONE: discriminates between different types of metal – in DISC mode the type of metal is indicated by a long tone; in TONE mode it is indicated using high or low tones.
  • GND BALL: eliminates interference caused by mineralized ground
  • TRACE: reset button, allows the needle to return to position after each detection
  • SENS: sensitivity adjustment to control detection depth

Technical details

VOL volume adjustment
TRESHOLD adjusts signal strength
Discriminator notch, tone
Frequency 6.5 kHz
Sensitivity 20 cm for a €2 coin (Ø 25 mm)
Low battery indicator red LED on when voltage is below 8.8 V
Output signal speaker and headphone output (3.5 mm jack)
Power supply 8 x 1.5 V AA batteries (not included)
adjustable shaft length 112~144 cm
search coil Ø 21.5 cm
Weight 1260 g
