Metal Detector – Kit
Compact, versatile metal detector, ideal for tracking down hidden treasure and metal objects. Able to detect coins, jewellery and metal bodies down to a depth of 6 cm, it is perfect for treasure hunters and DIY explorers.
SKU 7100-FK027EAN 8219671088596Item type: Assembled, KitMetal detectors, Sensors
Description
| Compact metal detector, ideal for locating coins and metal objects in soil and in sand alike. This metal detector is also effective at picking up metal objects in clothing and bags, or even iron pipes inside walls, down to a depth of 6 cm. With its versatility and accuracy, this metal detector proves very useful for treasure hunters and makes an appealing option for anyone who wants to explore metal detecting with a system built by hand.
Soldering required for assembly. The kit is supplied complete with assembly instructions. |

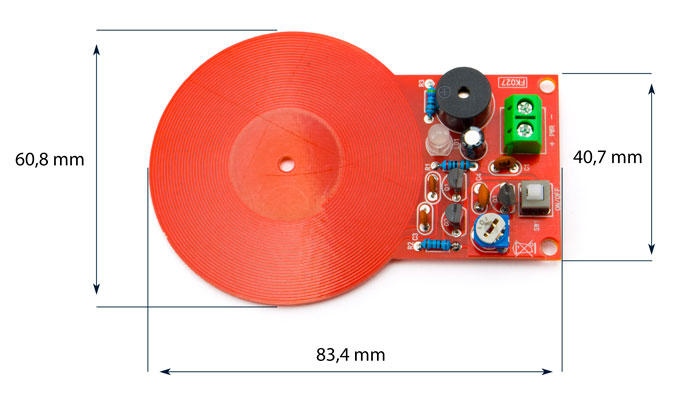

| Dimensions |
|
|

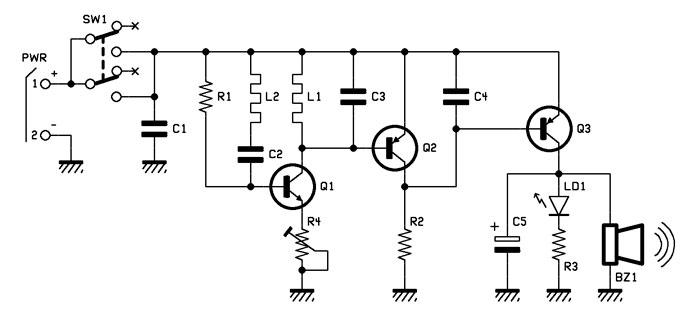

| Circuit diagram |
 |
Technical details
| Supply voltage | 9 ~ 12 Vdc |
|---|---|
| Current draw | 50 mA |
| Operating principle | inductance detection |
| Detects | all metals |
| Detection signalling | audible and visual |
| Adjustable sensitivity | by trimmer |
