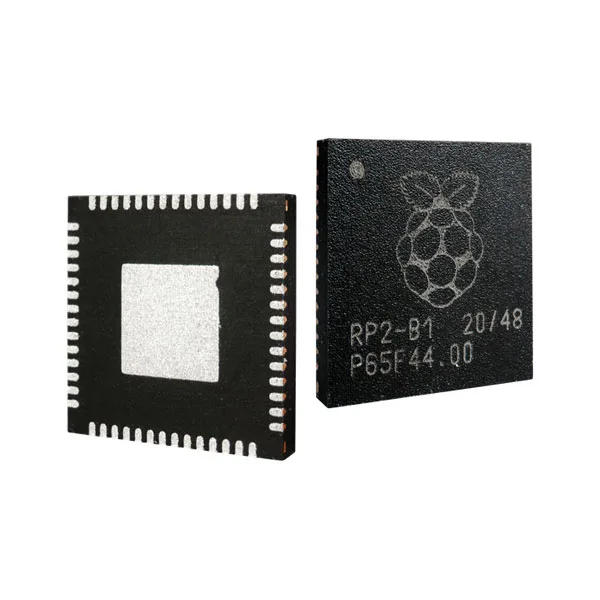

Raspberry Pi RP2040 Microcontroller – SMD

Description

The Raspberry Pi RP2040 is a dual-core Arm Cortex-M0+ processor. It features 264KB of on-chip SRAM in six independent banks, a DMA controller, a fully connected AHB crossbar, interpolator and integer divider peripherals, an on-chip programmable LDO to generate the core voltage, 2 on-chip PLLs to generate USB and core clocks, and 30 GPIO pins, 4 of which can be used as analog inputs. The RP2040 is manufactured on a modern 40nm process node, offering high performance, low dynamic power consumption, and low leakage, with a variety of low-power modes to support long-duration battery-powered operation.

Technical specifications

PINOUT

• Number of I2C channels: 2
• Number of ADC units: 1
• ADC: 4 x 12-bit
• Instruction Set Architecture: RISC
• Program memory type: FLASH
• Operating temperature: -20°C to +85°C
• Dimensions (mm): 7x7x0.9

Documentation and useful links

• RP2040 product brief
• RP2040 datasheet
• Hardware design with RP2040
