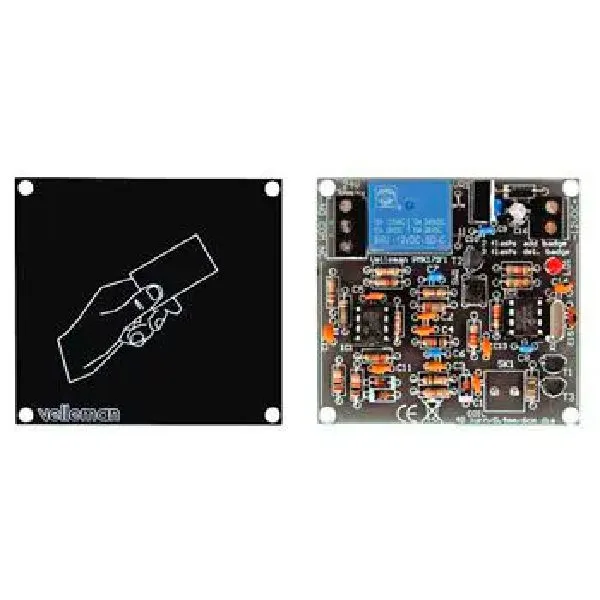

RFID KEY – ASSEMBLED VERSION
High-security RFID key with an output relay that can be switched, in timed or bistable (On/Off) mode, by holding up one of the previously stored transponders (up to 25 transponders)
SKU 8220-VM179EAN 5410329428662Item type: AssembledAccess control
Description
High-security RFID key with activatable output relay, timed or bistable (On/Off), by bringing a previously stored transponder close (up to 25 transponders). The kit includes all components, the drilled and silkscreened board, the read coil, and two card-format transponders. Power supply: 12 Vdc / 100 mA, dimensions: 66 x 62 x 20 mm.
Warning! the TAGs compatible with this product are only those in the related products (TAG 2).
Applications
- Opening doors, fences, gates, etc.
- Activating/deactivating security systems in homes/offices/vehicles, etc.
- Preventing unauthorized use of equipment, machinery, computers, etc.
Features
- RFID technology
- Stores up to 25 transponders
- Unlimited number of transponders in low-security mode
- Supplied with 2 transponders (card type)
- Easy addition and removal of transponders
Wiring diagram
Technical details
| Power supply | 12 Vdc / 100 mA |
|---|---|
| dimensions | 66 x 62 x 20 mm |
| Security | 64-bit encoded |
| Output relay activation | from 0.5 seconds to 4 minutes or (ON/OFF) |
| RFID | 125 kHz EM4100 compatible |
| Output relay contact voltage | max. 3 A/24 V |
