RFID Key – Kit
High-security RFID key with an output relay that is switched, timed or latching (On/Off), by presenting one of the transponders stored beforehand (up to 25 transponders)
SKU 8220-MK179EAN 5410329417000Item type: KitAccess control
Description

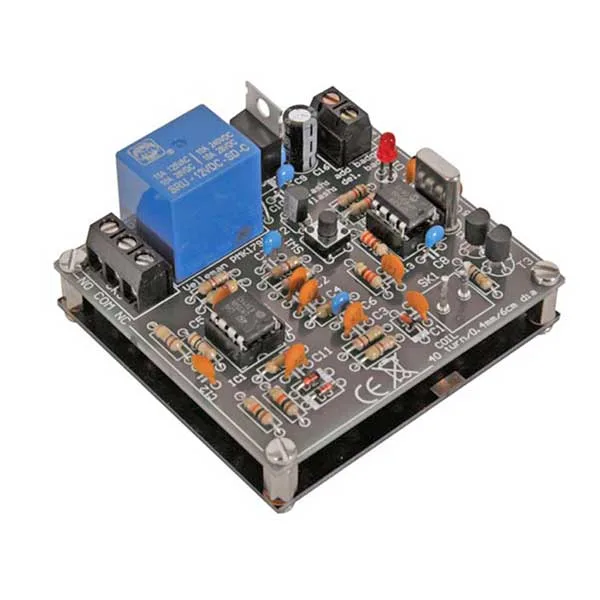

| High-security RFID key with an output relay that is switched, timed or latching (On/Off), by presenting one of the transponders stored beforehand (up to 25 transponders). The kit holds all the components, the drilled and silk-screened board, the reading coil and two card-format transponders. Power supply: 12 Vdc / 100 mA, dimensions: 66 x 62 x 20 mm.
Warning! the only TAGs that work with this product are the ones listed in the related products (TAG 2). |
|
 |
|
|
Applications
|
|
 |
|
|
Technical features
|
|
|
|
|

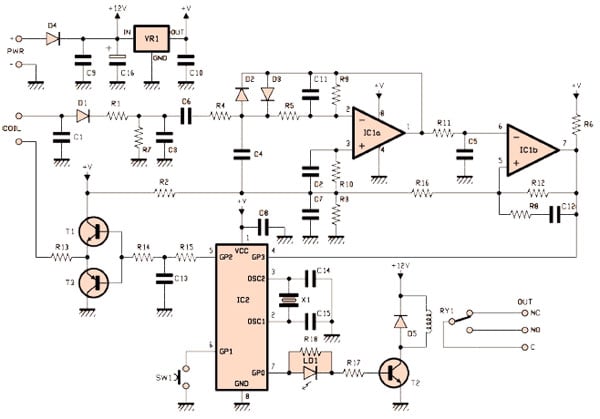

Circuit diagram
|
|
 |
|
Technical details
| Power supply | 12 Vdc / 100 mA |
|---|---|
| dimensions | 66 x 62 x 20 mm |
| Security | 64-bit coded |
| Output relay activation | from 0.5 seconds to 4 minutes, or latching (ON / OFF) |
| RFID | 125 kHz EM4100 compatible |
| Output relay contact rating | max. 3 A/24 V |
