RP2040 Mini Development Board

Description

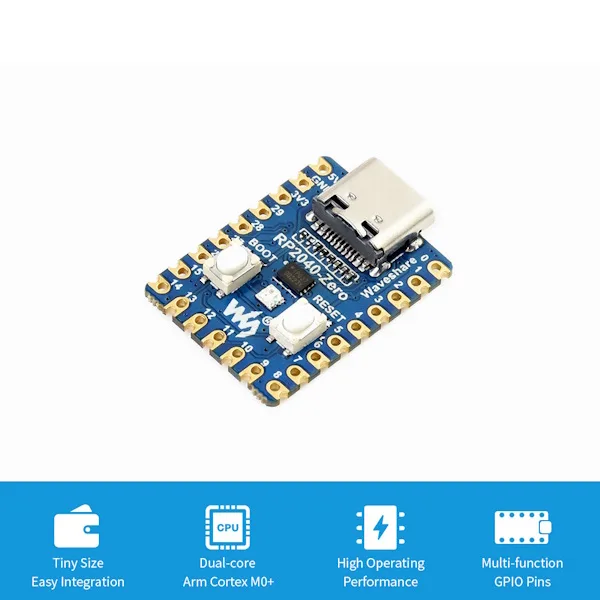

The RP2040-mini is a compact, high-performance development board built around the RP2040 microcontroller designed by Raspberry Pi. Its dual-core ARM Cortex-M0+ processor running at up to 133 MHz delivers high performance for embedded applications, robotics, automation and IoT devices. It packs 264 KB of SRAM and 2 MB of onboard Flash memory, plus a wide range of hardware interfaces such as SPI, I2C, UART, ADC and PWM. The miniature form factor allows it to be soldered straight onto custom PCBs. The USB Type-C port makes powering and programming easy, with support for C/C++ and MicroPython

Technical specifications

• USB Type-C connector
• USB 1.1 Host and Device support

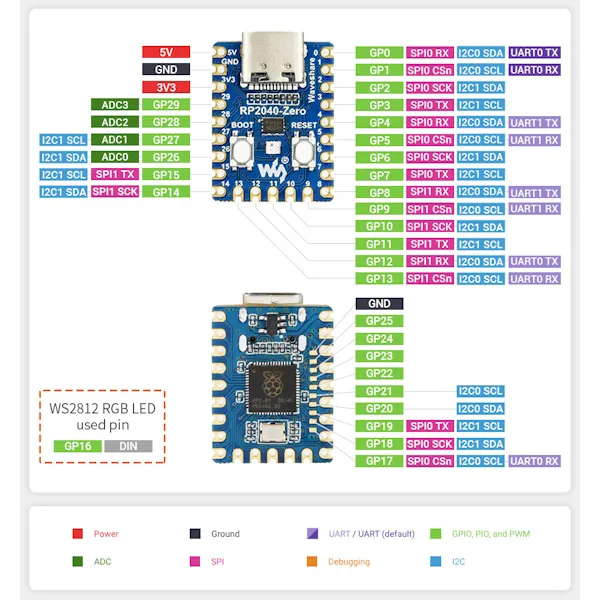

• 29 multifunction GPIOs
• 2 SPI interfaces
• 2 I2C interfaces
• 2 UART interfaces
• 4 ADC inputs, 12 bit
• 16 controllable PWM channels
• 8 PIO (Programmable I/O)
• Built-in temperature sensor
• Low-power mode support
• Drag-and-drop programming over USB, compatible with C/C++ and MicroPython
• Built-in WS2812 RGB LED

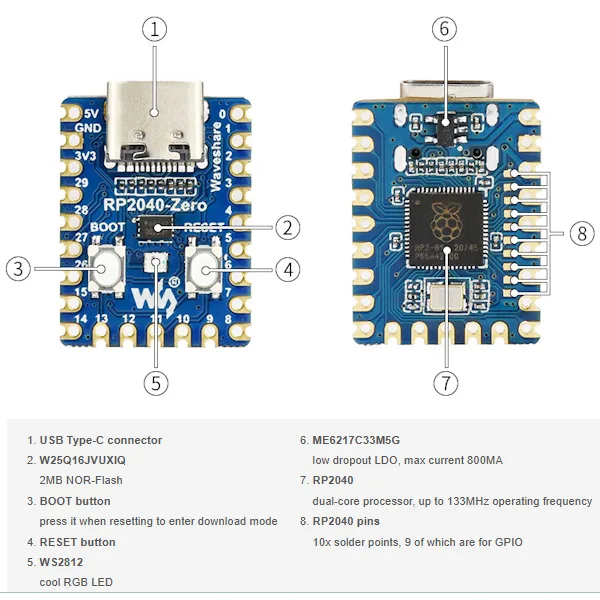

On board the RP2040MINI

Support for C/C++, MicroPython

Documentation

RP2040-Zero Wiki
