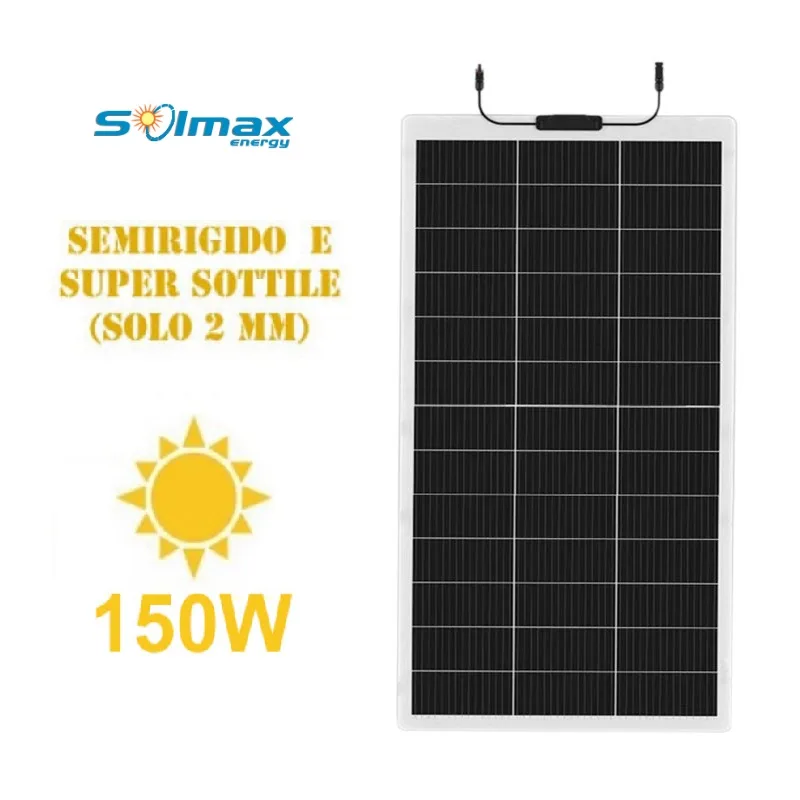

Semi-Rigid Solar Panel 12V-150W – 1280x600x2mm
A 150W semi-rigid solar panel designed for anyone after efficiency and versatility. Its ultra-thin profile follows the curved surfaces of motorhomes, caravans and boats. Built with high-efficiency cells to keep a 12V system constantly charged.
SKU 8242-SOL150FLEXEAN 8219671118453Item type: AssembledSolar panels
Description
Solar panel made of monocrystalline silicon. Lightweight and flexible, it is mainly designed to be mounted on slightly curved surfaces such as boats, caravans, and campers. It comes with 700mm cables with MC4 connectors. IP65 protection rating, 12V supply, 150W power.
Main Features

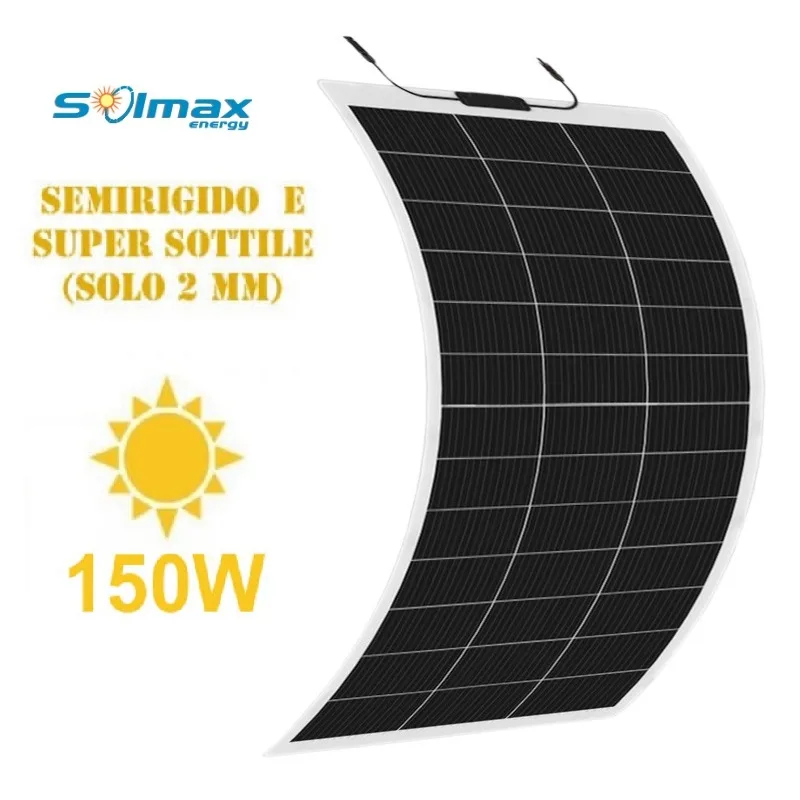

- Lightweight and flexible: easily adapts to curved surfaces, ensuring installation versatility.

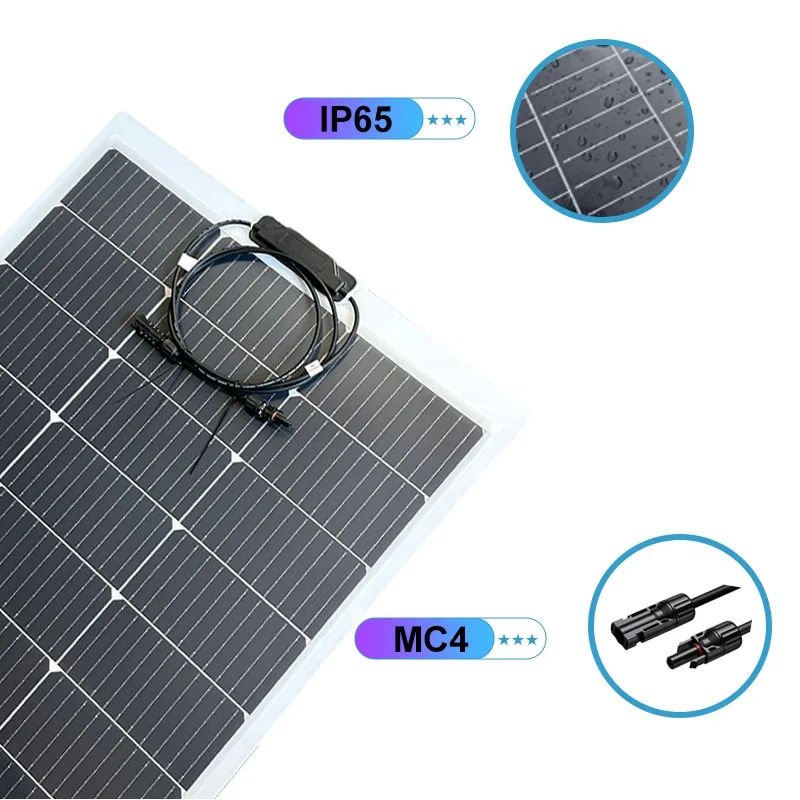

- IP65 protection rating: resistant to low-pressure water jets and dust, suitable for outdoor use.
- 12V supply: optimized for low-voltage systems, ideal for vehicles and boats.
- Easy installation: the panel’s flexibility simplifies installation in various situations.
- Suitable for various applications: perfect for boats, caravans, camping, and more.
- Long-lasting reliability: built to withstand weather conditions, ensuring long-term performance.
Technical Specifications
- Number of diodes: One
- Operating temperature: -20℃~+65℃
- Dimensions: 1280*600*2mm
- Weight: 3.10kg
Technical details
| Flexibility rating | 30 degrees maximum |
|---|---|
| Material | CPC/ETFE |
| Cables with MC4 connectors | equipped with 700mm cables for a secure connection and easy installation |
| Nominal power | 150W |
| Maximum power current (Impp) | 6.64A |
| Maximum power voltage (Vmpp) | 22.62V |
| Open-circuit voltage (Voc) | 26.52V |
| Short-circuit current (Isc) | 7.03A |
| Maximum system voltage | 200V |
| Output tolerance | +3% |
| Cable | 900mm / 2.5mm2 |
| Connector type | MC4 / MC4 compatible |
| Module structure | CPC / EVA / Backsheet |
| Junction box protection rating | IP65 |
