Servo motor 5.5kg/cm plastic gears 360°

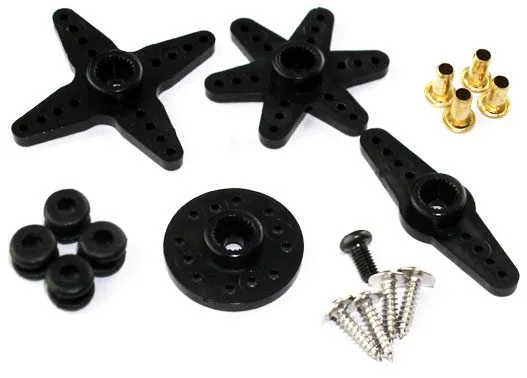

Low-cost analog servo with continuous rotation (360°) and 5.5 kg•cm torque. The package includes the servo and accessories

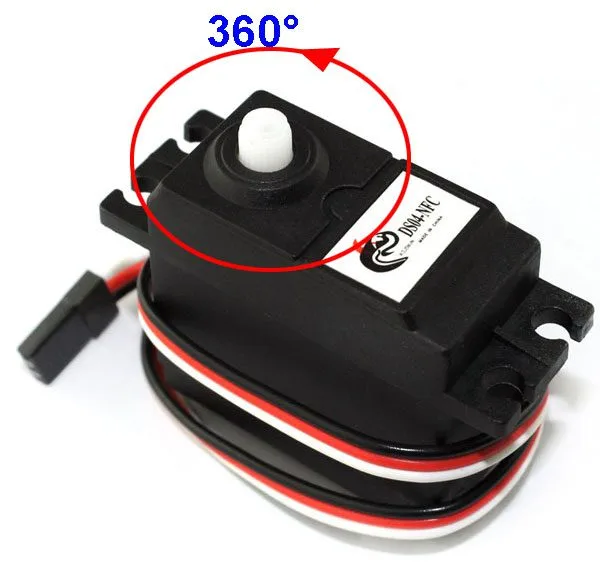

Servo motor 5.5kg/cm plastic gears 360° - Image 1
Servo motor 5.5kg/cm plastic gears 360° - Image 3

SKU 2846-SERVO360LCEAN 8219671097031Item type: Assembled

Description

Low-cost analog servo with continuous rotation (360°) and 5.5 kg•cm torque. The package includes the servo and accessories. Dimensions (mm): 40×39.1×20.
Technical specifications

Technical details

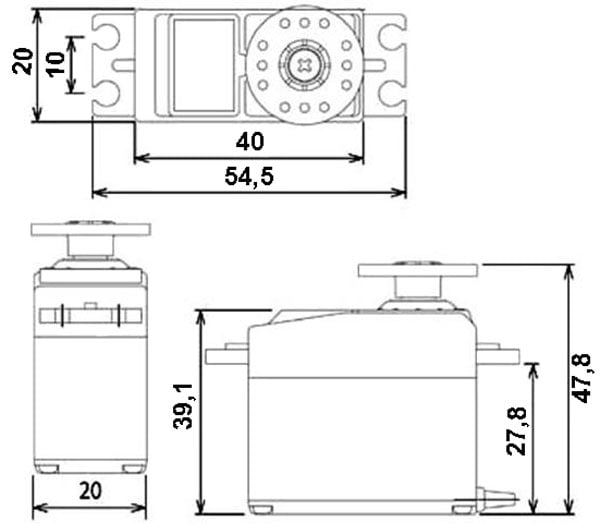

Dimensions (mm) 40x39.1x20
Torque 5.5 kg•cm (at 4.8 VDC)
Speed (no load) 0.22 sec/60° at 4.8 V
Operating voltage from 4.8 to 6 VDC
Consumption less than 1 A
Operating temperature from 0°C to +60°C
Weight 38 grams
