SPI Temperature and Humidity Sensor, -40 to +70°C
Fully calibrated and with an SPI digital output, this sensor measures temperatures from -40°C to +70°C and relative humidity from 10% to 98%
SKU 7719-TERMOIGROSENSEAN 8219671043793Item type: AssembledSensors, Sensors
Description
Fully calibrated and with an SPI digital output, this sensor measures temperatures from -40°C to +70°C and relative humidity from 10% to 98%. It offers high accuracy, excellent stability and fast data transfer. It is particularly suited to consumer products, weather stations and HVAC applications (Heating, Ventilation and Air Conditioning), and so on. Dimensions: 19 mm (length) x 12 mm (width) x 10.80 mm (height), weight: 30 grams.
| Technical specifications |
|
Temperature |
|
|
Resolution |
0.1°C |
|
Repeatability |
Typical 0.1°C; Max. 0.2°C |
|
Range |
Min. -40°C; Max. 70°C |
|
Accuracy |
Typical ±0.5°C; Max. ±1°C |
| Response time | 60 seconds (delta T=1.0) |

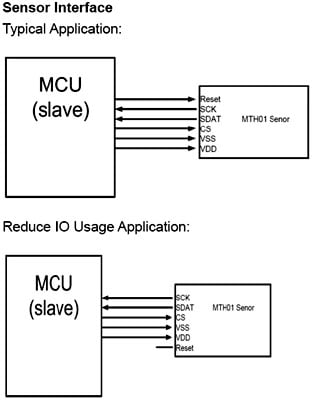

| CONNECTIONS |
| Documentation and useful links |
Technical details
| Resolution | Max. 1% |
|---|---|
| Repeatability | Typical 1% |
| Accuracy | Typical 3%; Max. 5% (temperature from 0 to 50°C) |
| Non-linearity | Typical 1% |
| Range | Min. 10%; Max. 98% (temperature from 0 to 50°C) |
| Response time | 60 seconds |
