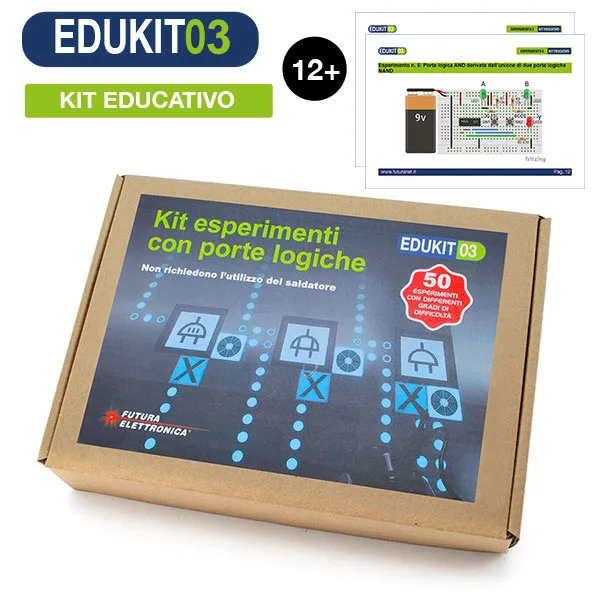

STEM – Logic Gates Experiment Kit

The kit includes 50 experiments, divided by difficulty level. The first 17 projects are designed for beginners and focus on the operation of individual logic gates, while the following 33 are more advanced, aimed at experienced users who want to deepen their knowledge of monostable, bistable and astable multivibrators.

The kit works with a 9V battery, available separately.

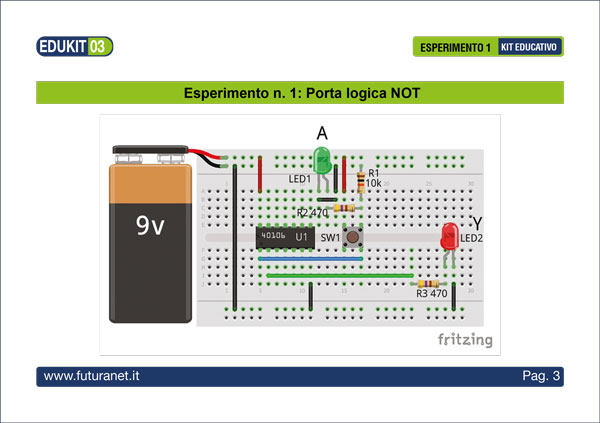

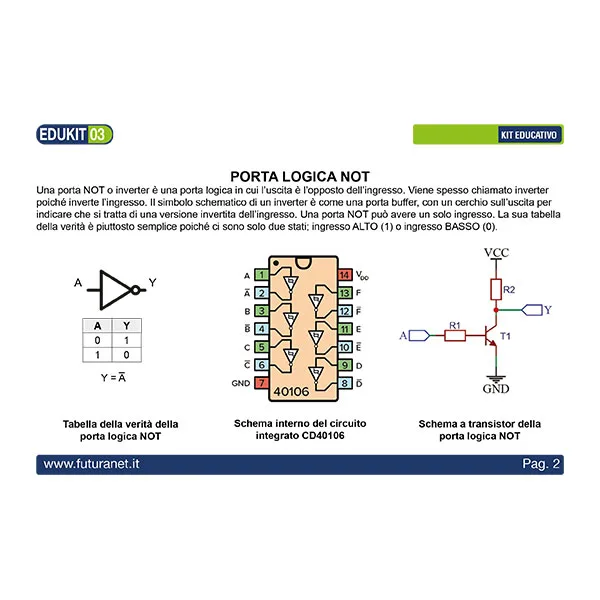

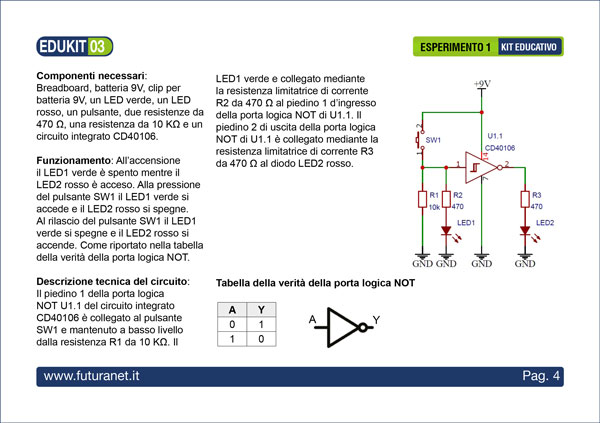

The kit is completed by a 124-page full-color manual, full of illustrations, detailed diagrams and comprehensive descriptions, making learning even more intuitive and engaging.

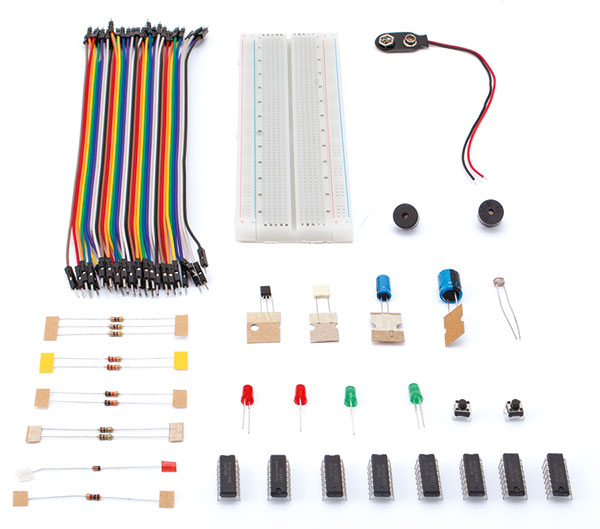

• 1 x breadboard
• 1 x set of jumper wires
• 1 x 9V battery clip
• 2 x 5×5 pushbuttons
• 1 x active buzzer
• 1 x passive buzzer (magnetic resonator)
• 2 x red LEDs
• 2 x green LEDs
• 1 x 20 KΩ photoresistor
• 3 x 470 Ω resistors
• 1 x 1 KΩ resistor
• 2 x 10 KΩ resistors
• 2 x 22 KΩ resistors
• 2 x 10 MΩ resistors
• 1 x 10 nF multilayer capacitor
• 2 x 47 uF electrolytic capacitors
• 1 x 470 uF electrolytic capacitor
• 1 x BC337 transistor
• 1 x 1N4148 diode
• 1 x CD4001 (NOR)
• 1 x CD4011 (NAND)
• 1 x CD4071 (OR)
• 1 x CD 4081 (AND)
• 1 x CD4093 (NAND – trigger)
• 1 x CD40106 (NOT – trigger)
• 1 x CD4070 (XOR)
• 1 x CD4077 (XNOR)
• Full-color manual
