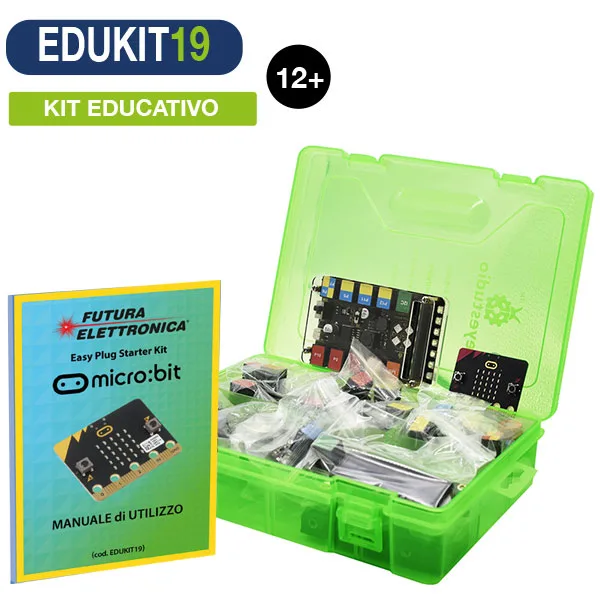

STEM – Easy Plug Kit with micro:bit, Sensors and Italian Guide

A complete set with the BBC micro:bit v2.0 board and a wide range of plug & play modules, perfect for students, beginners and enthusiasts. Thanks to intuitive programming with MakeCode, learning will be simple and engaging.

The kit includes sensors and modules such as a buzzer, 1602 LCD display, RGB LED and collision sensor, ideal for creating interactive projects, from the simplest to the most advanced. With detailed guides and sample code, you’ll be able to develop your skills in a practical and fun way.

Designed for STEM and coding learning, this kit turns theory into practice, sparking digital creativity.

Included in the kit: an manual with step-by-step instructions for installing and using the micro:bit board, plus 35 detailed projects in a 36-page colour manual, complete with illustrations, diagrams and in-depth descriptions.

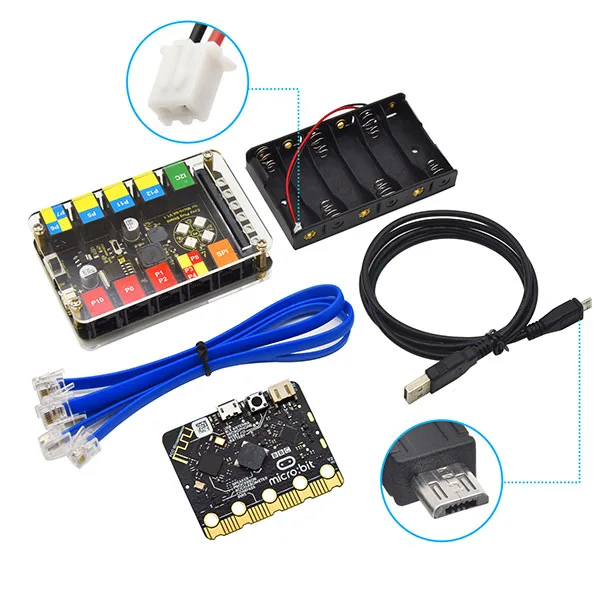

• micro:bit v2.0 board included: The micro:bit board is the heart of the kit, ready to be used for programming projects and interactive learning.
• 35 hands-on projects: The kit includes 35 detailed projects, ideal for learning programming, electronics and STEM science concepts.
• manual: An manual that guides the user step by step through installing, using and programming the micro:bit.
• 36 colour pages: The manual features 36 colour pages, full of illustrations, diagrams and in-depth descriptions to make learning easier.
• Projects suited to all levels: The projects range from the simplest to the most complex, offering a progressive learning path.
• Compatible with MakeCode: Easy, accessible programming via the MakeCode platform, ideal for beginners and young programmers.
• Extra components included: In addition to the micro:bit board, the kit includes various sensors and modules to expand project possibilities, such as LEDs, buttons and motion sensors.
• Interactive learning: Each project is designed to be hands-on and engaging, sparking users’ curiosity and inventiveness.
• Ease of use: Suitable for kids and beginners who want to learn to program and work with hardware in a simple, fun way.
• STEM projects: The kit is designed to introduce users to the world of science, technology, engineering and mathematics (STEM), fostering active learning and hands-on exploration.

• 32-bit ARM Cortex-M4 CPU
• 5×5 LED matrix display (red LEDs)
• Two programmable buttons
• Status LEDs for power and microphone
• Built-in MEMS microphone
• Built-in speaker
• Built-in accelerometer, compass, light and temperature sensors
• Wireless communication, via Bluetooth 5.1, BLE and 2.4GHz Radio

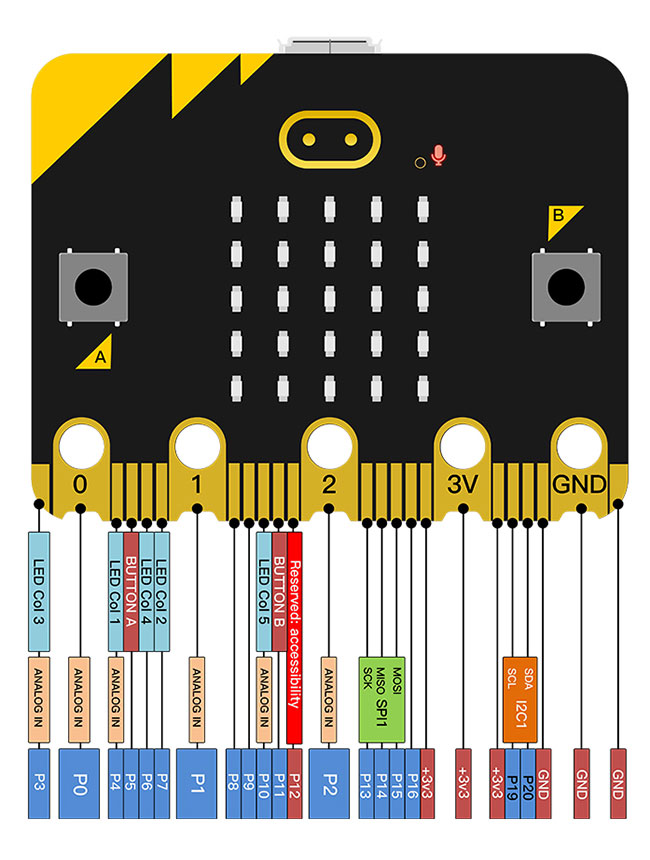

• Edge Connector (total 25 pins: 20 smaller, 5 larger):
  4 dedicated GPIO, PWM, I²C, SPI, power and so on.
  5 ring pins for connecting crocodile clips or banana plugs
• Type B Micro USB connector
• JST-PH battery connector (not JST-XH)
• Reset button with status LED

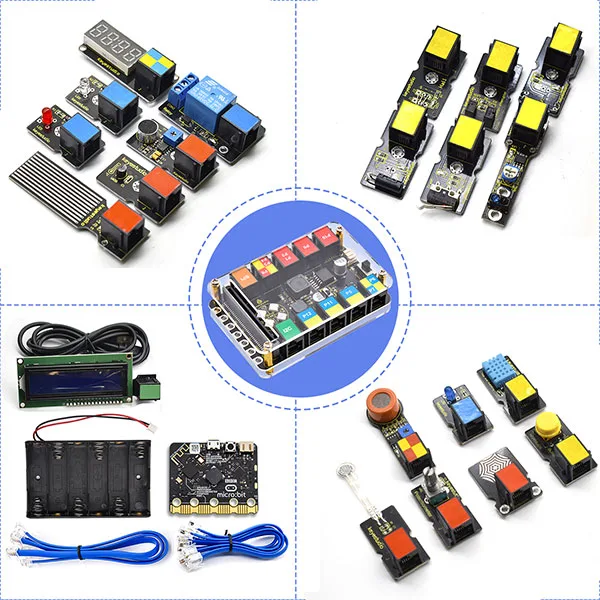

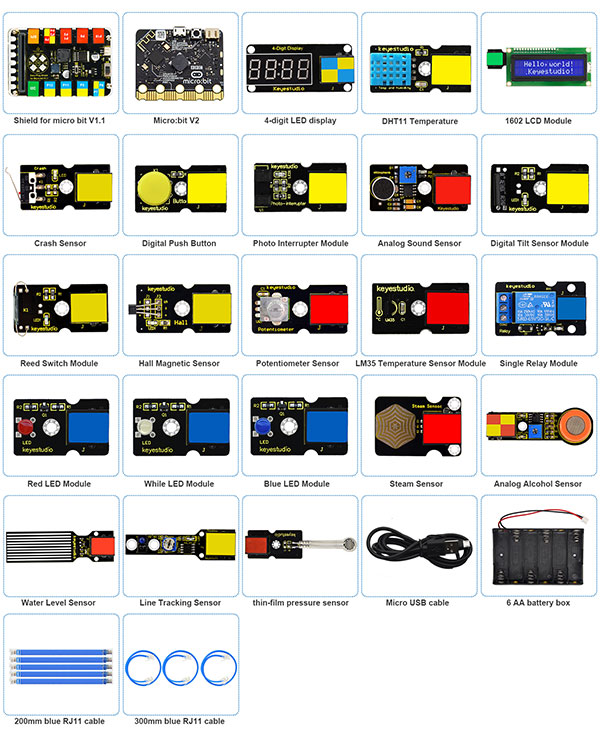

• Easy Plug Shield;
• 3 LED modules: white, red, blue;
• Mechanical pressure sensor module (strain gauge);
• Microphone module;
• Water sensor module;
• Potentiometer module;
• Alcohol sensor module;
• Temperature sensor module (LM35);
• Tilt sensor module;
• Vapour sensor module;
• Hall sensor module;
• Crash sensor module;
• Button module;
• Reed switch module;
• Line sensor module;
• Photocoupler module;
• Relay module;
• DHT11 temperature and humidity sensor module;
• 1602 LCD display module;
• 4-digit LED display module;
• 5 RJ11 cables, 20 cm;
• 3 RJ11 cables, 30 cm;
• USB-micro cable;
• 6xAA battery holder;

• Tutorial
• Download code and libraries
