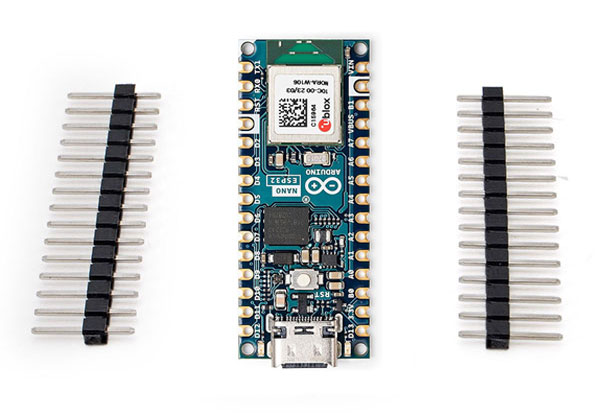

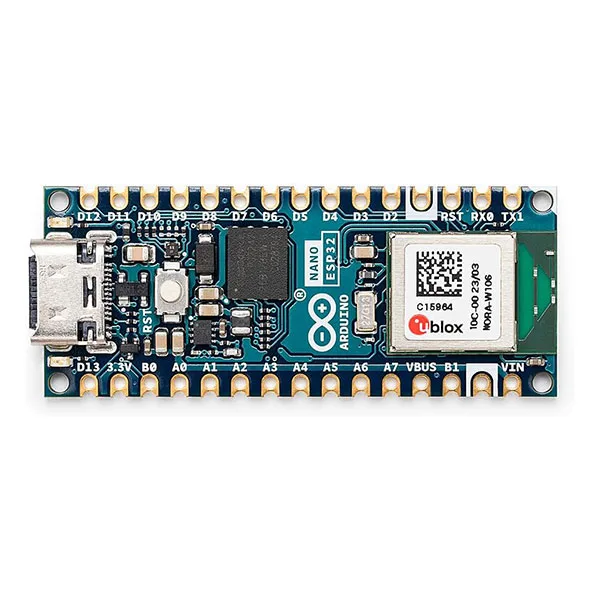

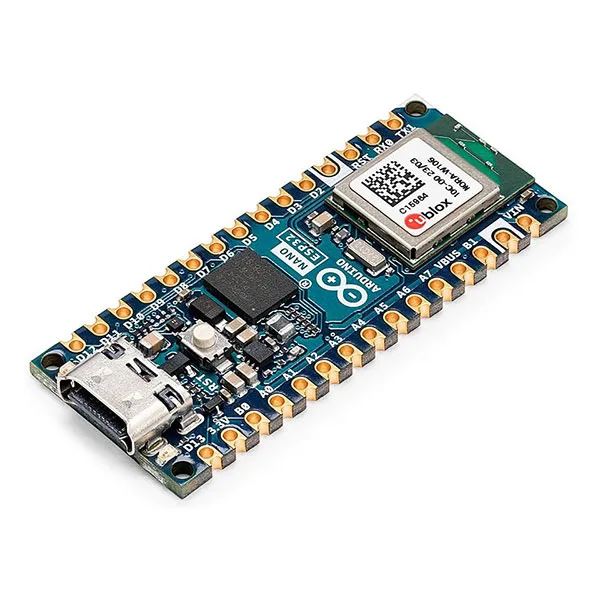

Arduino NANO ESP32 with Wi-Fi and Bluetooth

It offers 8 MB of external PSRAM, 512 kB of internal SRAM, 384 kB of ROM and 16 MB of Flash memory, making it suitable for developing advanced firmware or running interpreted languages such as MicroPython. The USB-C® connector ensures a modern, robust connection for power and programming, while official support for the Arduino IDE enables fast, integrated and reliable development.

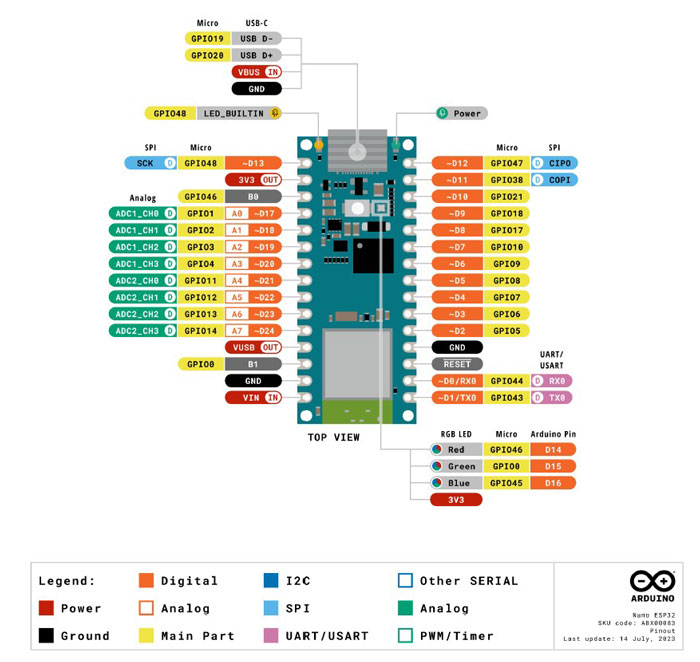

The 14 digital pins, 8 analogue inputs, 5 PWM pins and support for UART, I2C, SPI make it extremely versatile. All digital pins support external interrupts. It also includes a built-in RGB LED controllable via software. This board is particularly well suited to anyone who wants the power of the ESP32 in a form factor compatible with the Arduino Nano ecosystem, while keeping the ease of use typical of Arduino.

• Connectivity:
  • Wi-Fi®: u-blox® NORA-W106 (ESP32-S3)
  • Bluetooth®: u-blox® NORA-W106 (ESP32-S3)
• Communication:
  • SPI:
    • SCK: D13
    • Chip Select (CS): any GPIO
• Power supply:
  • I/O logic voltage: 3.3 V
  • Input voltage (nominal): 6–21 V
  • Maximum current per output pin: 40 mA
  • Maximum current per input pin: 28 mA
• Performance:
  • Processor frequency: up to 240 MHz
• Memory:
  • ROM: 384 kB
  • SRAM: 512 kB
  • External Flash: 128 Mbit (16 MB)
  • RAM: 8 MB (NORA-W106-10B)
• Dimensions:
  • Width: 18 mm
  • Length: 45 mm
