TMP102 temperature sensor

Breakout board built around the tiny TMP102 digital temperature sensor

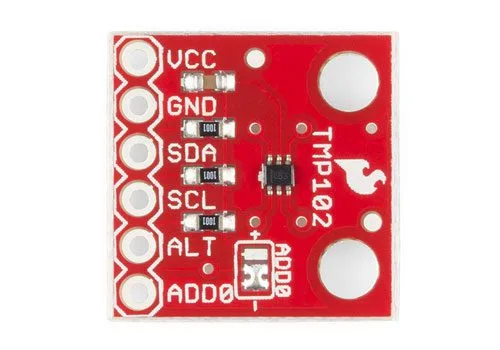

TMP102 temperature sensor - Image 1

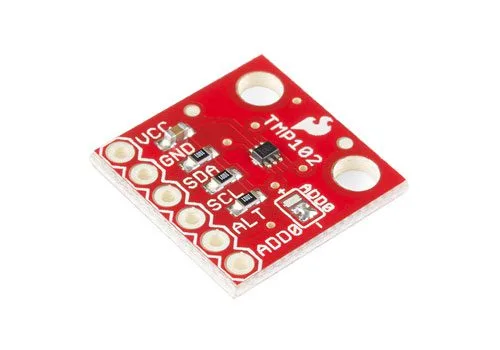

TMP102 temperature sensor - Image 3

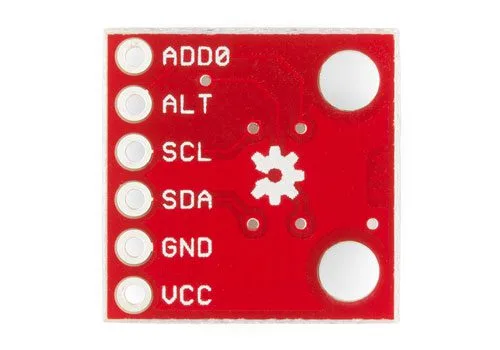

TMP102 temperature sensor - Image 4

SKU 6168-TMP102EAN 8219671074872Item type: Assembled,

Description

Breakout board based on the very small digital temperature sensor TMP102. This sensor has a resolution of 0.0625°C and an accuracy of up to 0.5°C. Communication is achieved through a two-wire serial interface. The supply voltage must be between 1.4 and 3.6 Vdc. It includes filter capacitors and pull-up resistors.

Documentation and useful links

Technical details

Resolution 0.0625°C (12-bit)
Accuracy 0.5°C (from -25°C to +85°C)
Power supply from 1.4 Vdc to 3.6 Vdc
Consumption 10 µA
Communication interface two-wire serial
