Tuya Wi-Fi CCT LED dimmer controller – 2 channels with remote

CCWW controller for CCT LED strips (Controller Color Temp), dimmable and with variable colour temperature.

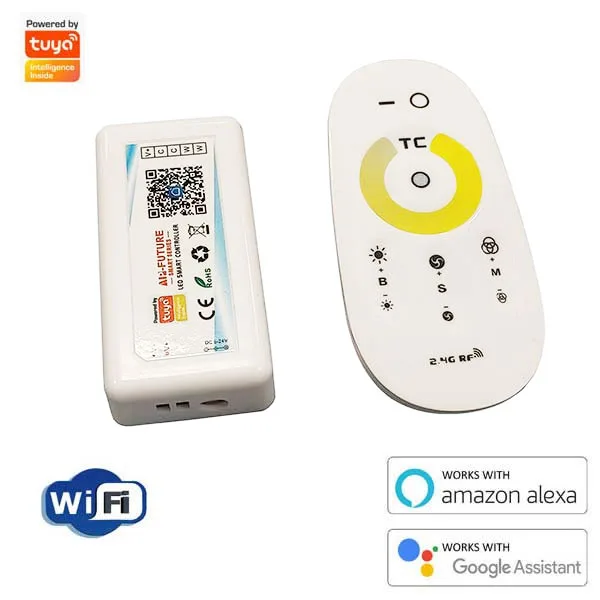

Tuya Wi-Fi CCT LED dimmer controller - 2 channels with remote - Image 1

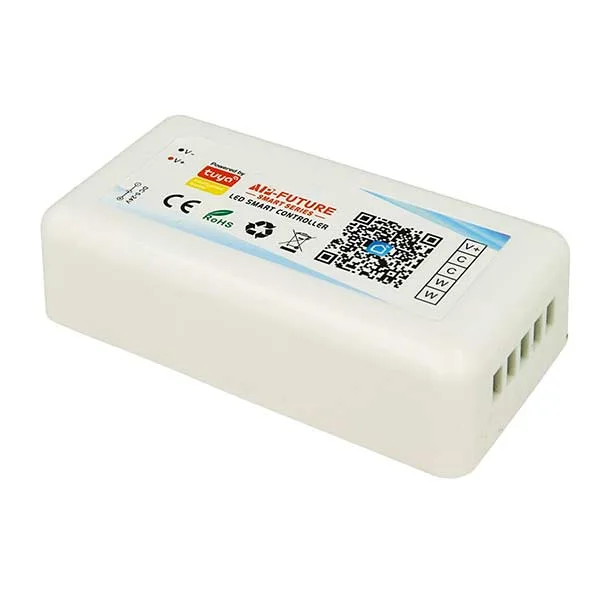

Tuya Wi-Fi CCT LED dimmer controller - 2 channels with remote - Image 3

SKU 2846-TUYACWCTRLEAN 8219671110990Item type: Assembled

Description

CCWW controller for CCT LED strips (Controller Color Temp), dimmable and with variable colour temperature. It can be operated with the dedicated remote control or through the Tuya App. Compatible with Amazon Alexa and Google Assistant.
Technical specifications
  • Controller:
    – Compatibility: compatible with all CCT LED strips;
  • Radio remote:
    – Operating temperature: -20°C to +55°C
    – Supply: 2 AAA 1.5 volt batteries (not included)

Technical details

Supply 12V to 24V
Output current <6A per channel
Output terminals 1 positive, 2 negative
Operating temperature -20℃ ~ +60℃
Size 84x44x22mm
Weight 45 g
Polarity common anode
Operating frequency 2.4 GHz
Range about 20 metres
Dimensions (mm) 110x53x20
