UBLOX NEO-6M 50-channel GPS

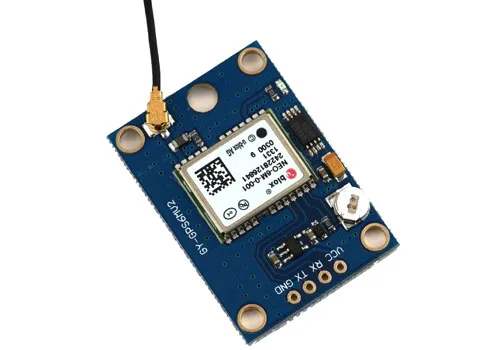

Small board based on the UBLOX NEO-6M 50-channel GPS module, fitted with a data backup battery, ceramic antenna and serial communication
SKU 2846-GPSNEO6MEAN 8219671074117Item type: AssembledGPS
Description
Small board based on the 50-channel UBLOX NEO-6M GPS module, complete with backup battery for data, ceramic antenna, and serial communication. Paired with Arduino or Raspberry Pi, it allows you to know the position of a robot or an object, or it can be used with the flight controller for multicopters (APM2.5 or later). Power supply: from 3 Vdc to 5 Vdc.
Technical specifications
- Acceleration: < 4g
- Position update frequency: every 5 Hz
- Serial output: 9600 Baud, 8 bits, no parity bit, 1 stop bit
- Data output: default NMEA format for u-blox 6 (GGA, GLL, GSA, GSV, RMC and VTG). Unlike ANTARIS 4, ZDA is disabled by default.
- Backup battery for data: Yes
- Connections: VCC, GND, TX, RX
- Module dimensions (LxWxH): 30x23x4 mm
- Antenna dimensions (LxWxH): 25x25x8 mm
- Operating temperature: from -40°C to +80°C
Documentation and useful links
Technical details
| Power supply | from 3 Vdc to 5 Vdc |
|---|---|
| Chipset | U-BLOX NEO-6M |
| Frequency | L1, 1575.42 MHz |
| Channels | 50 channels with over 1 million effective correlators |
| Tracking sensitivity | -161dBm |
| Acquisition sensitivity | -148dBm |
| Default data | WGS84 |
| Reacquisition | 0.1 sec. (average) |
| Hot start | 1 second (average) |
| Warm start | 35 seconds |
| Cold start | 38 seconds |
| C/A code | 1.023 MHz stream |
| Altitude | 18,000 meters (60,000 feet max) |
| Maximum speed | 515 meters/second (1000 knots max) |
