Ultraviolet Sensor Module

Small module with a sensor that measures the UV intensity (UVI) of sunlight, lamps or other sources with a wavelength between 200 nm and 370 nm

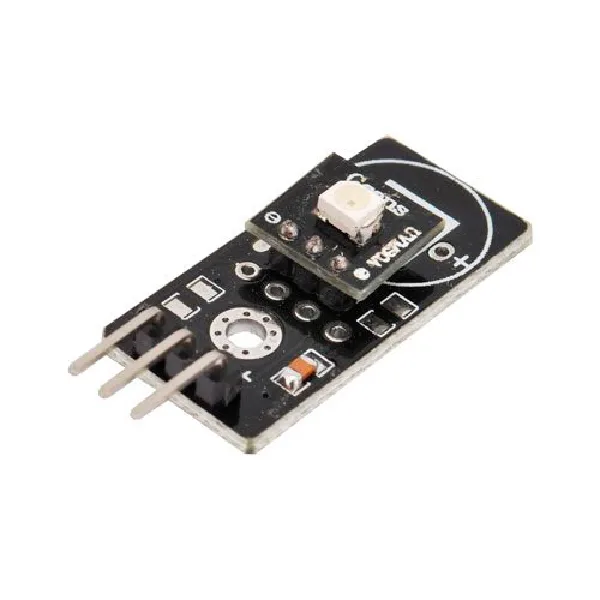

Ultraviolet Sensor Module - Image 1

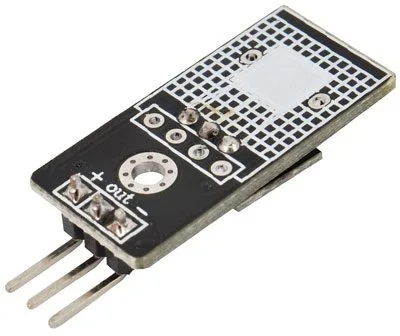

Ultraviolet Sensor Module - Image 3

SKU 7300-UVM-30AEAN 8219671061001Item type: Assembled,

Description

A small module with a sensor that measures the intensity of UV (UVI) radiation from sunlight, lamps, or other sources, with wavelengths between 200 nm and 370 nm. It provides a linear output voltage from 0 to 1 V proportional to UV intensity. Power supply: 3 to 5 Vdc, consumption: 0.06mA (max. 0.1mA), dimensions (mm): 28 x 12 x 10, operating temperature: -20°C to +85°C.

Technical details

Power supply 3 to 5 Vdc
consumption 0.06mA (max. 0.1mA)
dimensions (mm) 28 x 12 x 10
operating temperature -20°C to +85°C
