USB Reader for ID12 Module

USB-interface reader for the ID12 module

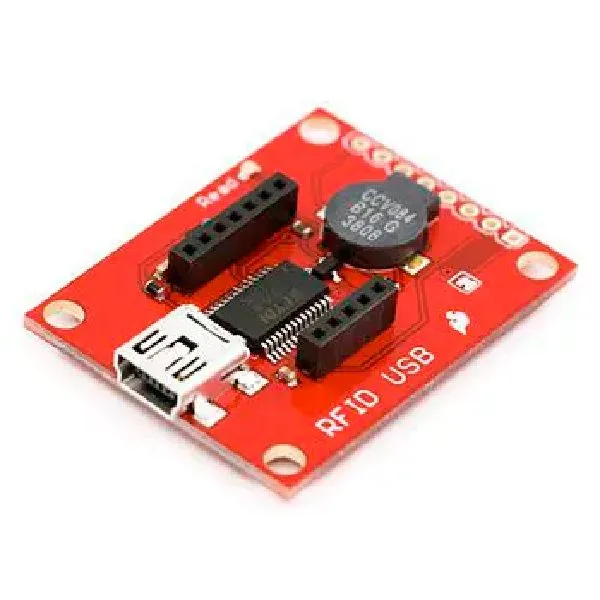

USB Reader for ID12 Module - Image 1

SKU 7300-RFIDUSBLETTEAN 8219671012362Item type: Assembled

Description

USB reader for the ID12 module. Once connected to a USB port and with Hyper Terminal running (9600bps 8N1), simply bring an RFID tag close to see the unique 32-bit code on screen. The board is powered from the PC’s USB port. It is based on an FTDI chip and comes with an LED and a buzzer. Dimensions: 39.47 x 30.60 mm. The ID12 module and RFID tag are not included.

Warning! Only the tags listed in the related products (TAG1, TAG2, and TAG3CAPSULA) are compatible with this product.

Documentation and useful links
