UV sensor module with analogue output – 200 to 370 nm detection
Compact module with a sensor that measures the UV index of sunlight, lamps or other sources with a wavelength between 200 nm and 370 nm
SKU 8300-UVDETMODEAN 8219671105927Item type: AssembledSensors, Sensors
Description

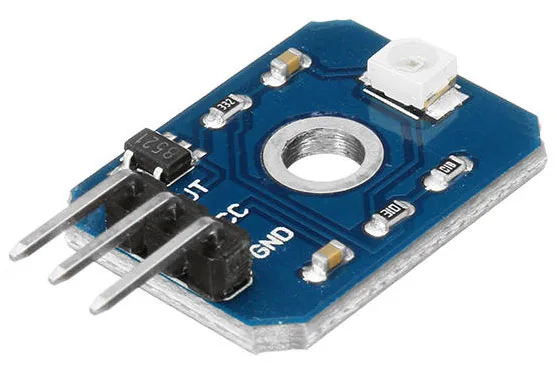

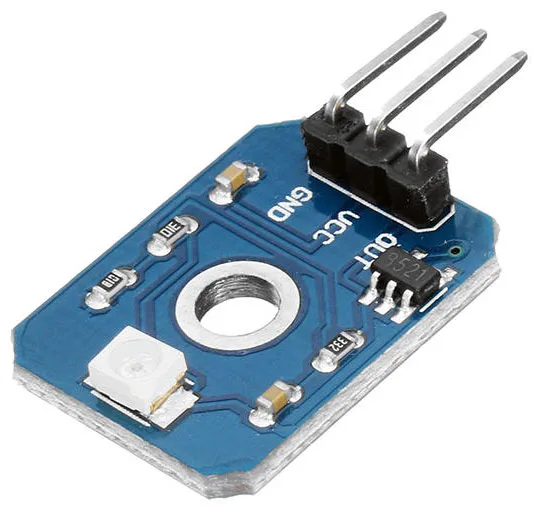

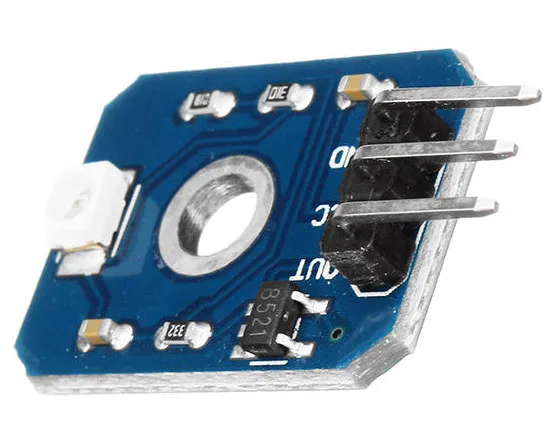

Small module with a sensor capable of measuring the UV index of sunlight, lamps, or other sources with a wavelength between 200 nm and 370 nm. It provides a linear output voltage proportional to UV intensity. Power supply: 3.3 to 5 VDC, dimensions (mm): 20×15.5×5. Suitable for UV testers, outdoor UV detectors, and germicidal lamp UV detectors.
Technical specifications
- Dimensions (mm): 20×15.2×7.5

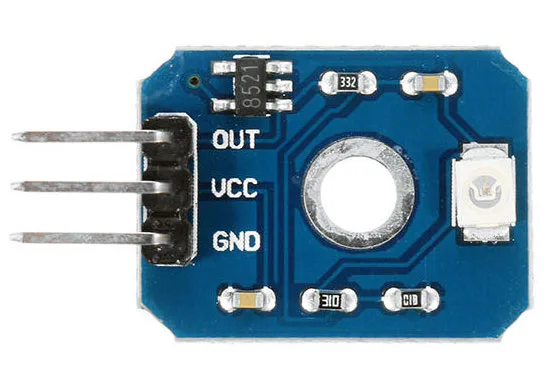

- Pinout:
– OUT (output from 0 to 1 VDC)
– VCC (positive supply)
– GND (negative supply and output signal)
Technical details
| Power supply | 3.3 to 5 VDC |
|---|---|
| dimensions (mm) | 20x15.5x5 |
| Current consumption | typical 0.06 mA – max 0.1 mA |
| Output | voltage from 0 to 1 VDC (0 to 10 UV index) |
| Detection wavelength | 200 nm to 370 nm |
| Accuracy | about 1 UV index |
| Response time | less than ½ second |
| Operating temperature | -20℃ to +85℃ |
