Video Surveillance Set with NVR and 4 Wi-Fi 3MPX Cameras with Two-Way Audio

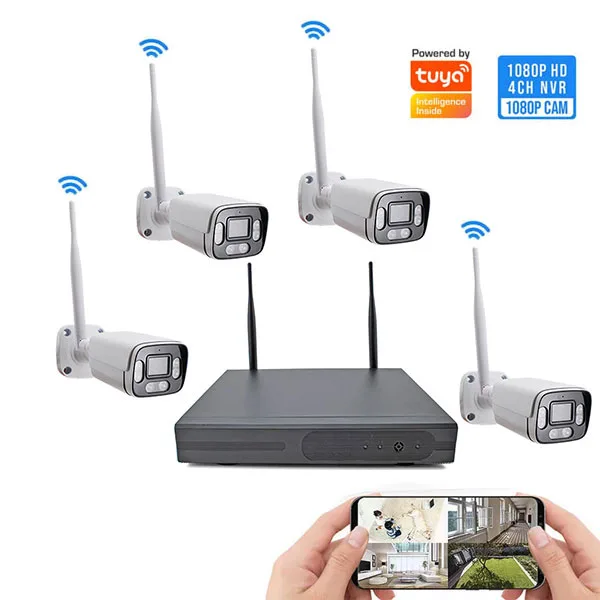

Wi-Fi video surveillance set made up of a 4-channel NVR (Network Video Recorder) and 4 Day & Night bullet cameras with 3 Mpx CMOS sensor and two-way audio.
Video Surveillance Set with NVR and 4 Wi-Fi 3MPX Cameras with Two-Way Audio - Image 1

SKU 8100-VIDEOCAMSET3EAN 8219671121293Features: Tuya / SmartLifeItem type: Starter kitConnection type: Wireless

Description

This Wi-Fi video surveillance set with NVR gives you a complete system for home or business security, designed to be simple and immediate to use. The cameras are already paired with the NVR, so they are detected automatically when you switch on, with no further configuration needed.

The 4-channel NVR records and manages the pictures from the four Day & Night bullet cameras easily, each one fitted with a 3 Mpx CMOS sensor. With remote viewing from a PC or a smartphone (iOS, Android through the “TUYA” app) you can keep an eye on the cameras wherever you are, and record and back up the footage. The OSD (On Screen Display) function, driven with the mouse, makes control intuitive.

Each camera has 2 IR LEDs and 4 high-power white LEDs, which give a clear picture even in poor light: they come on automatically below a certain light threshold and reach up to 30 metres. The cameras also have two-way audio, so you can talk with the place you are monitoring, for complete, interactive control in real time.

The antennas on the NVR are for the cameras only, because the recorder creates a dedicated WiFi network the cameras connect to directly. That means the cameras will not be visible on the LAN, while the recorder is reachable only over the wired connection.
Key features
  • 4-channel NVR: the Network Video Recorder handles up to four cameras at the same time, recording and displaying the pictures from each of them.
  • Day & Night bullet cameras: the cameras are designed to work by day and by night, thanks to their 3 Mpx CMOS sensors. That means high-resolution pictures in any light.
  • Wi-Fi transmission: sending the packets over Wi-Fi gives smooth pictures free of interference, and makes the system more reliable.
  • Remote viewing: you can view the pictures from anywhere on a PC connected to the Internet or on a smartphone (iOS, Android) using the “TUYA” app. This allows real-time remote monitoring and lets you record and back up the footage.
  • OSD (On Screen Display) function: settings are managed from a menu shown directly on the screen, reached with the mouse plugged into the NVR.
  • High-power LEDs with a range of 30 metres: each camera has four high-power white LEDs and two IR LEDs, for a clear view even in difficult light. These LEDs come on automatically below a certain light threshold, so surveillance keeps working at night too.
  • Two-way audio: every camera has two-way audio, so you can talk with the place being monitored.

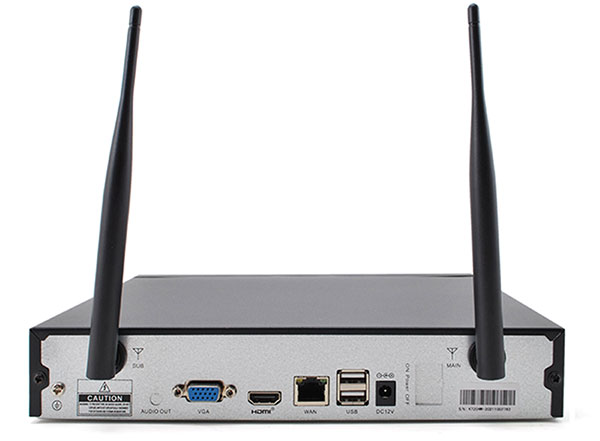

Rear panel
Set Vieosorveglianza - Videocamset3 - Pannello posteriore

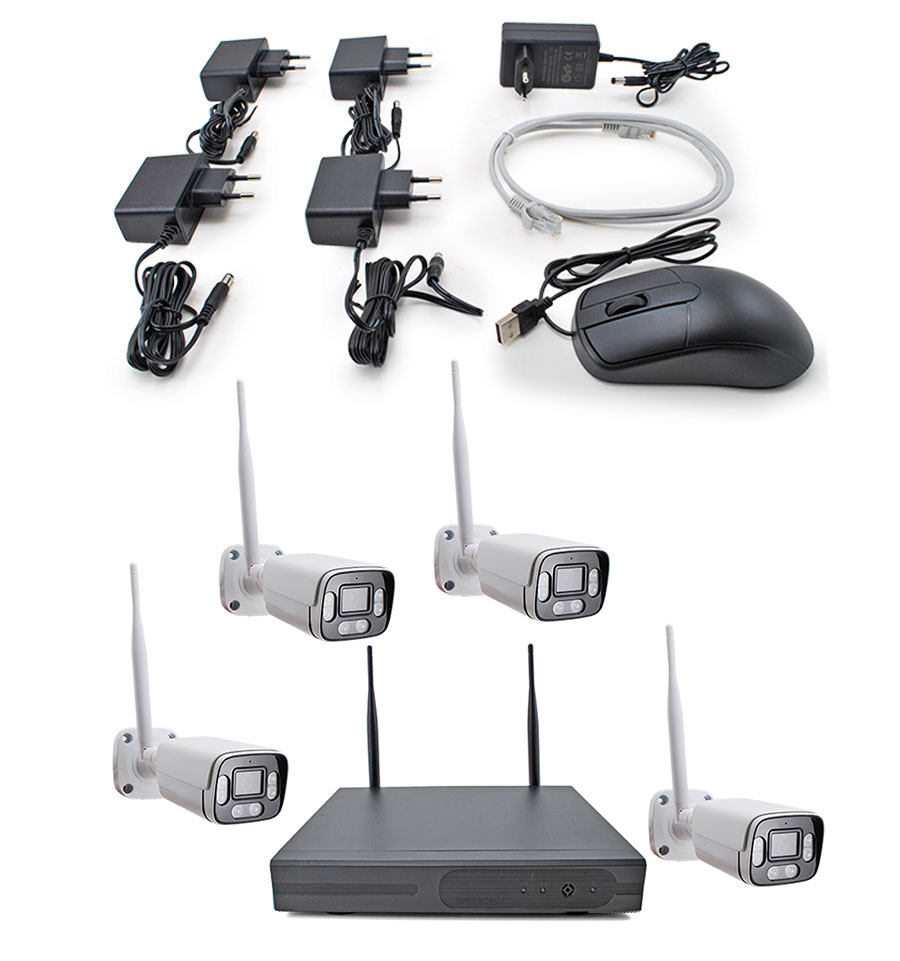

Package contents

Set Vieosorveglianza - Videocamset3
The set includes:
1 4-channel NVR, 4 Wi-Fi cameras, 1 USB mouse, 5 power adapters (12 Volt), 1 metre long CAT 5E Ethernet cable, user manual
Technical specifications
  • Bullet camera
    • Housing colour: white
    • Housing material: die-cast aluminium
    • Lens: fixed 3.6 mm
    • Field of view: 75°
    • Number of IR LEDs: 2
    • Number of white LEDs: 4
    • IR LED illuminator range: about 30 metres
    • Frame rate: 20fps
    • Motion detection function: on a motion alarm it sends a push notification to the smartphone display
    • Wireless standard (dedicated to the link to the NVR): IEEE802.11b, 802.11g, 802.11n, operating frequency 2.4GHz ~ 2.4835GHz
    • Free app for remote management: TUYA
    • Two-way audio: yes
    • Protection rating: IP66
    • Operating temperature: -20°C to + 55°C
    • Power supply: 12 VDC 0.12A (mains adapter included)
    • Dimensions (mm): 106 (without bracket) x 65 x 59
    • Weight: about 300 grams
  • NVR
    • Processor: Hi3536D
    • Operating system: embedded LINUX
    • Video inputs: 4
    • Video outputs: 1 VGA channel / 1 HDMI channel (720P60, XGA, 1080P60)
    • Compression method: H.265 / H.264
    • Ethernet interface: 1 RJ45 Ethernet port 10M/100M
    • Network protocols: TCP/IP, HTTP, DHCP, UDP, RTP, RTSP, FTP, NTP, SADP, P2P
    • ONVIF: not supported
    • Wireless standard (dedicated to the connection of the cameras): IEEE802.11b, 802.11g, 802.11n, operating frequency 2.4GHz ~ 2.4835GHz
    • 2 USB 2.0 ports: used for saving footage and for the mouse
    • Recording modes: manual / scheduled / motion detection
    • HDD: takes 1 SATA hard disk, 2.5/3.5″ (max. 4 TB)
    • Power supply: 12 Vdc – 2 A through 220 Vac mains adapter (included)
    • Consumption: 5 watts (without hard disk)
    • Operating temperature: -10°C to +55°C
    • Dimensions (mm): 255x215x45
    • Weight: 600 g (without hard disk)

Technical details

Please note hard disk not included
Housing colour white
Housing material die-cast aluminium
Image sensor CMOS 1/2.9" 3MPX
Lens fixed 3.6 mm
Field of view 75°
Number of IR LEDs 2
Number of white LEDs 4
IR LED illuminator range about 30 metres
Frame rate 20fps
Free app for remote management TUYA
Two-way audio yes
Protection rating IP66
Operating temperature -20°C to + 55°C
