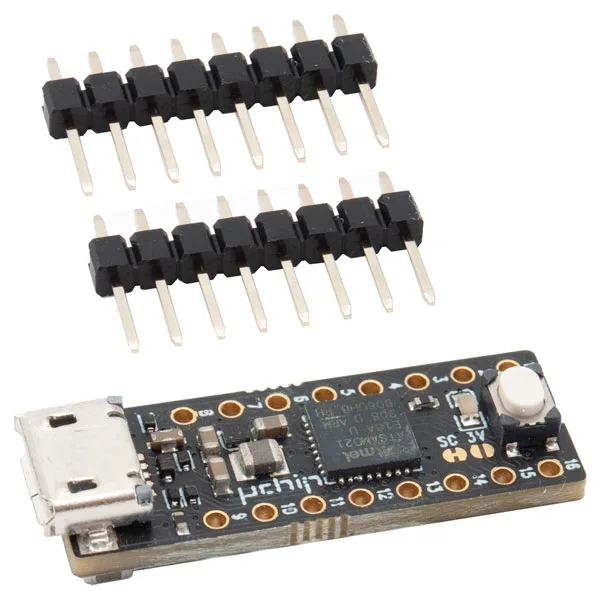

A very small narrow-DIP-sized, Arduino Zero compatible USB dev board (OTG enabled), with integrated buck and boost power supplies!
Version with headers NOT SOLDERED
Specifications
CPU: 32-bit Cortex M0+ ATSAMD21-series running at 48 MHz (Arduino Zero Compatible)
FLASH: 256 kB (248 kB due to integrated bootloader).
RAM: 32 kB, zero wait states.
