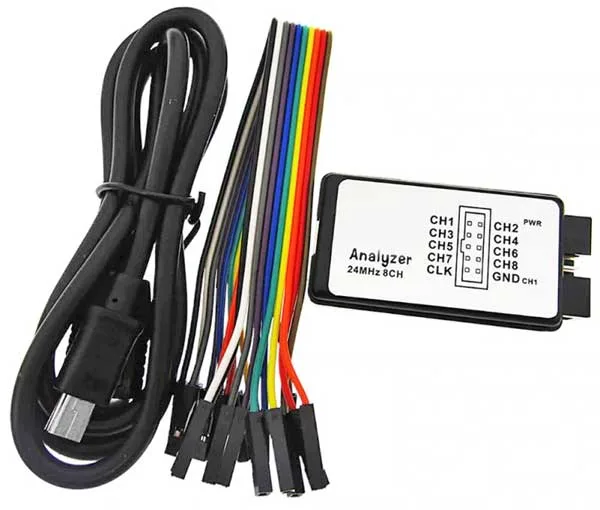

Compact 8-channel logic analyzer, used for testing and analyzing digital circuits, connects to the PC’s USB port allowing data to be acquired for more detailed analysis. Maximum sampling frequency 24 MHz. Supports 10 different communication standards: CAN, DMX-512, I²C, I2S / PCM, Manchester, 1-Wire, Async Serial, Simple Parallel, SPI, UNI / O. Fully compatible with Saleae Logic software.
The package includes: the analyzer,
