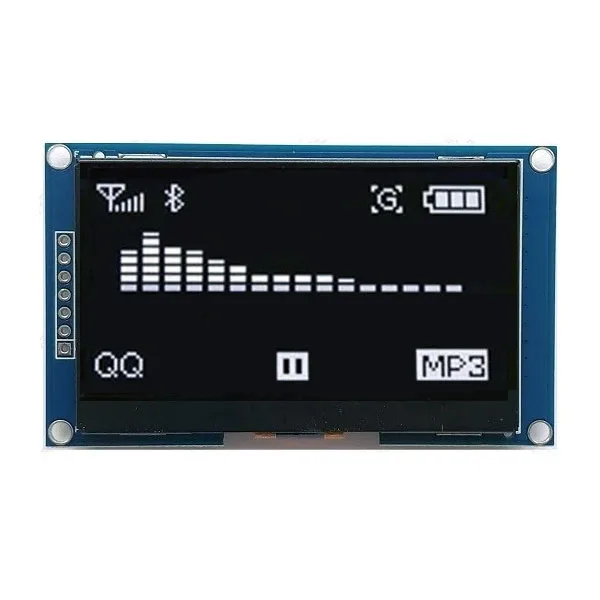

Module with 2.42″, 128×64 pixel OLED (Organic Light Emitting Diode) display, white characters, SPI / I²C interface (default SPI, for I²C see table), graphic controller SSD1309, viewing angle about 80°. With good contrast, no need for backlighting. Power supply: 3.3 VDC, dimensions (mm): 72x43x5.9, weight: 22 grams, working temperature: -40°C to +85°C.
Features

Breakout board based on the OMRON 2SMPB-02E pressure and humidity sensor. It allows to detect atmospheric pressure and temperature. Designed for creating weather stations or applications where it is important to know these parameters, such as air mass meters and altimeters. The breakout has a low drop linear voltage regulator and a MOSFET adapter for…
NTC thermistor 100K SMD 10% 2-PIN 1206 Go to Open-Electronics Store Build it yourself Boards, sensors and kits for projects like this one. Browse the shop
Breakout board based on Time of Flight technology and make use of the VL53L0X sensor, a low drop-out linear voltage regulator, a MOSFET adapter for the I²C-Bus interface useful for translating the 0 / 2.8V logic levels of the integrated to adapt them to the standard TTL of traditional logic boards and to Arduino. The…
Mini digital multimeter with LCD display. It is capable of measuring direct and alternating voltages up to 310 V, resistances up to 40 Mohm, frequencies up to 100 kHz, electrical continuity. It has automatic range change, LED flashlight, non-contact detection NCV (Non-contact Detection), ambient temperature indication, automatic shutdown and low battery indication. Power supply with…
[iframe_loader src=”http://www.youtube.com/embed/beqdlg89I5o?hl=it&fs=1″ height=”349″ width=”425″ ] This module integrates the sensor MMA7455L (produced by Freescale), able to detect the movement on three axes, and then in every direction. The chip offers the possibility to select three different sensitivity (± 2g, ± 4g, ± 8g) and makes available, on an SPI bus and the I ²…
Small board for the Mercury system with a prototyping area and provision for mounting a connector on which to insert the ESP8266 Wi-Fi module (not included). Ideal for adding Wi-Fi connectivity to the Base Board (BB). Mercury System The Mercury System (MS in short) is a modular system for the development of connectivity…
