100 MHz digital oscilloscope with 25 MHz arbitrary waveform generator and 7″ TFT display

Description

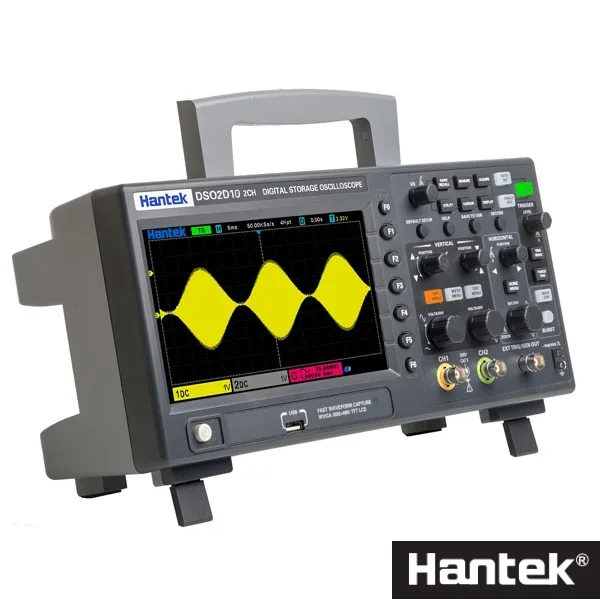

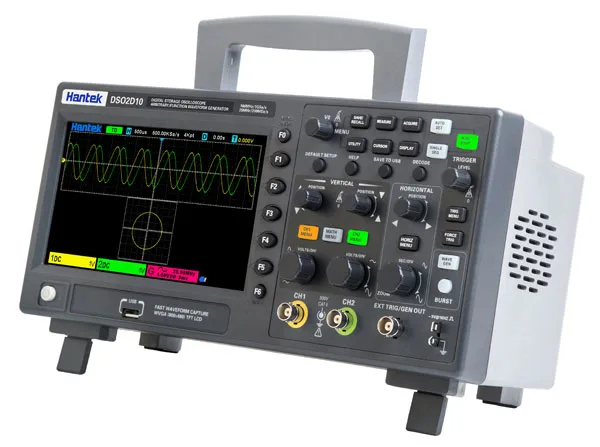

The DSO2D10 is a next-generation two-channel digital oscilloscope, ideal for professional and educational applications that call for precision, versatility and advanced analysis. Fitted with an arbitrary waveform generator up to 25 MHz and a 12-bit A/D converter, it offers a complete solution for signal display and generation.

Its large 7″ colour TFT display (800×480 pixels) with 16 million colours delivers a sharp, detailed view of waveforms. With a 100 MHz bandwidth and a real-time sampling rate of up to 1GSa/s (single channel), it ensures accurate acquisition even of the most complex signals. Memory depth of up to 8MB allows for extended analysis without data loss.

The DSO2D10 has 32 built-in automatic measurements, an FFT function, 4 math operations (addition, subtraction, multiplication, division), a 3-digit digital voltmeter and a 6-digit hardware frequency counter. Its rich set of trigger modes – including UART, CAN, SPI and IIC – also makes it perfect for digital bus analysis.

Thanks to the included PC software, you can carry out real-time analysis and save waveforms, CSV files, images and settings. The USB Host and Device ports make it easy to connect and save data. The built-in function generator supports sine, square and triangular waves, noise, exponential and programmable arbitrary waveforms.

Reliable, compact and packed with features, the DSO2D10 is a professional choice that stands out for its price-to-performance ratio compared with limited budget solutions. The package includes all the accessories you need to get started right away: a 100 MHz probe, cables, power cord and manual.

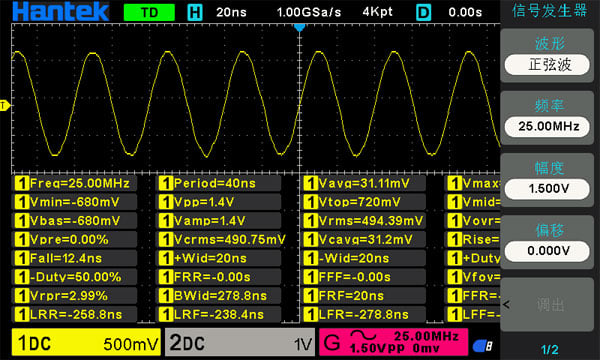

Software screenshots

Technical features

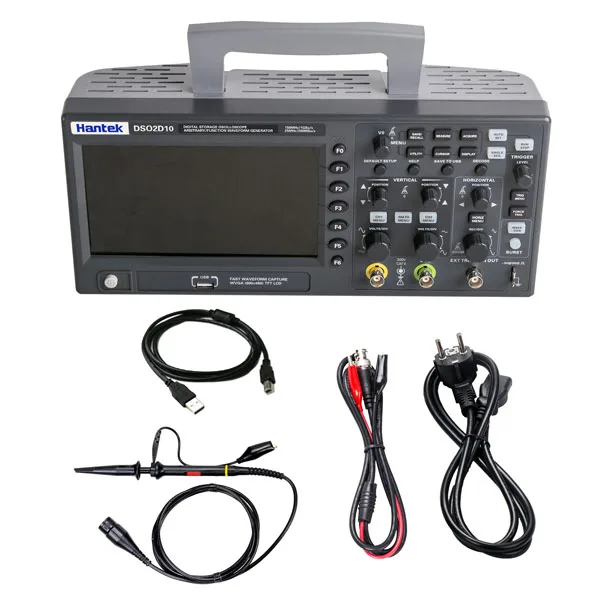

Oscilloscope with arbitrary waveform generator up to 25 MHz and 12-bit A/D converter 7″ TFT display (resolution: 800×480) Built-in FFT (Fast Fourier Transform) function Software for real-time analysis via PC Port USB Host, USB Device Multiple data formats can be saved, such as settings, waveforms, reference waveforms, CSV files, images Also features a 3-digit digital voltmeter and a 6-digit hardware frequency indicator 32 types of automatic measurement with statistics, real-time statistics for maximum, minimum, standard deviation and so on. Four math functions, including FF Trigger modes: Edge, Pulse, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC Package contents: Oscilloscope with waveform generator, CD with software and manual (in English), 1 100 MHz probe, USB cable, power cable, BNC-to-2-crocodile-clip cable

Technical specifications

Acquisition mode: Normal, Peak value, Average, High resolution Inputs: – Input coupling: AC, DC, GND – Input impedance: 1 Mohm ±2% // 20pF±3pF – Probe attenuation: 1X, 10X – Supported probe attenuation factor: 1X, 10X, 100X, 1000X – Maximum input voltage: CAT II: 300 VRMS (10X) Horizontal – Waveform interpolation: (sin x)/x – Record length: single channel 8 MB / dual channel 4MB – Scale range: 2ns/div-100s/div 1, 2, 5 – Time base mode: Y-T, X-Y, Roll – Zero offset: ±0.5 div x minimum time base gear – Delta Time measurement accuracy (full bandwidth): Single-shot, Normal mode:± (1 sample interval +100ppm × reading + 0.6ns); >16 averages:± (1 sample interval + 100ppm × reading + 0.4ns); Sample interval = s/div ÷ 200 – Sampling rate and delay time accuracy: ± 50 ppm Vertical – Bandwidth: 100 MHz – Rise time at BNC (typical): 3.5ns – Vertical resolution: 8-bit resolution, all channels sampled simultaneously – Vertical sensitivity: 2mV/div to 10V/div – Offset range: ≥ 200mV/div, ±1V; ＜200mV/div ±50V – Math: +, -, ×, ÷, FFT – FFT: Window: Rectangle, Hanning, Hamming, Blackman, Bartlett, Flattop – Bandwidth limit: 20 MHz – Low-frequency response (-3db): At BNC ≤ 10Hz – Vertical gain accuracy: In ”normal” or ”average” acquisition mode, accuracy from 10V/div to 10mV/div is ±3%; in “normal” or “average” acquisition mode, accuracy from 5 mV/div to 2 mV/div is ±4% Trigger – Type: Edge, Pulse width, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC – Trigger level range: ±5 divisions from the centre of the screen – Trigger mode: Auto, Normal, Single – Level: CH1~CH2 (±4 divisions from the centre of the screen) / EXT: 0-3.3 volts – Holdoff range: 8ns~10s – Trigger level accuracy: CH1/CH2: 0.2div × volts/div within ± 4 divisions from the centre of the screen; EXT(Only With AWG Model) ±（set value× 6%+40mV) – Edge trigger: Slope: Rising edge, falling edge, rising or falling edge // Trigger source: CH1, CH2, EXT – Pulse width trigger: Polarity: positive and negative / condition (when): <, >, !=, = / Signal source: CH1, CH2 / Pulse width range: 8ns ~ 10s / Accuracy 8ns – Video: Signal source: CH1-CH2 / Sync: scan line, line number, odd field, even field, all fields – Slope: slope: rising, falling / condition (when): <, >, !=, = / signal source: CH1-CH2, Time interval: 8ns-10s / Accuracy: 8 ns Measurement – Measurement cursor: Voltage difference between cursors: Difference between cursors Delta V / time: Delta T / Reciprocal of Delta T in Hertz (1/Delta T) Automatic measurement: Frequency, Period, Average, Peak-Peak, Cycle RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot, BWIDTH, FRF, FFR, LRR, LRF, LFR, LFF DVM: Data source: CH1, CH2 / DC RMS Measurement type: CH1, CH2 / DC, RMS / AC RMS / DC Frequency counter: 6-bit hardware frequency counter Display – TFT 7″ 16 million colours (24-bit true colour) – Resolution: 800×480 – Persistence time: minimum 1s, 5s, 10s, 30s, infinite – Display type: dots, vectors – Display brightness: adjustable – Grid type: adjustable – Grid brightness: adjustable Interface: USB Host, USB Device – Probe compensation output – Output voltage (typical): about 2 Vpp into 1 Mohm load – Frequency (typical): 1 kHz Arbitrary waveform generator – Number of channels: 1 – Sample Rate: 200 MSa/s – Vertical resolution: 12 bit – Maximum output frequency: 25 MHz – Output waveform: sine, square, ramp, Exp, noise, DC – Arbitrary waveforms: Arb1, Arb2, Arb3, Arb4 – Sine (frequency range): 0.1Hz to 25MHz – Square/pulse (frequency range): 0.1Hz to 10MHz – Triangular wave (frequency range): 0.1Hz to 1MHz – Sampling wave (frequency range): 0.1Hz to 1MHz – Index (frequency range): 0.1Hz to 5MHz – Arb1 (frequency range): 0.1Hz to 10MHz – Arb2 (frequency range): 0.1Hz to 10MHz – Arb3 (frequency range): 0.1Hz to 10MHz – Arb4 (frequency range): 0.1Hz to 10MHz – Waveform depth: 4KSa – Frequency: Accuracy 100 ppm (<10 kHz) 50 ppm (>10 kHz) / Resolution 0.1 Hz or 4 bit – Amplitude (output range): 10mV~7Vp-p (high impedance) / 5mV~3.5Vp-p (50Ω) – DC offset: Range: ±3.5 V, high impedance / ±1.75 V, 50 Ω Resolution: 100 μV or 3 bits Accuracy: 2% (1 kHz) Output impedance: 50 ohm Power supply – Supply voltage: 120-240 VAC RMS (± 10%), 45 Hz to 66Hz, CAT II – Power consumption: < 30W – Fuse: T, 3.15A – 250 V, 5×20 mm Miscellaneous – Operating temperature: 0°C to +50°C (32~122°F) – Storage temperature: -40°C to +71°C (-40°F to +159.8°F) – Humidity: at 40°C or below: = 90% relative humidity; from 41°C to +50°C) = 60% relative humidity – Operating altitude: below 3,000 m (10,000 feet) – Dimensions (mm): 318x110x150 – Weight: 1.9 kg

Download

User manual in English Full review in Italian
