Multi-Channel Datalogger for High-Precision Temperature Measurements

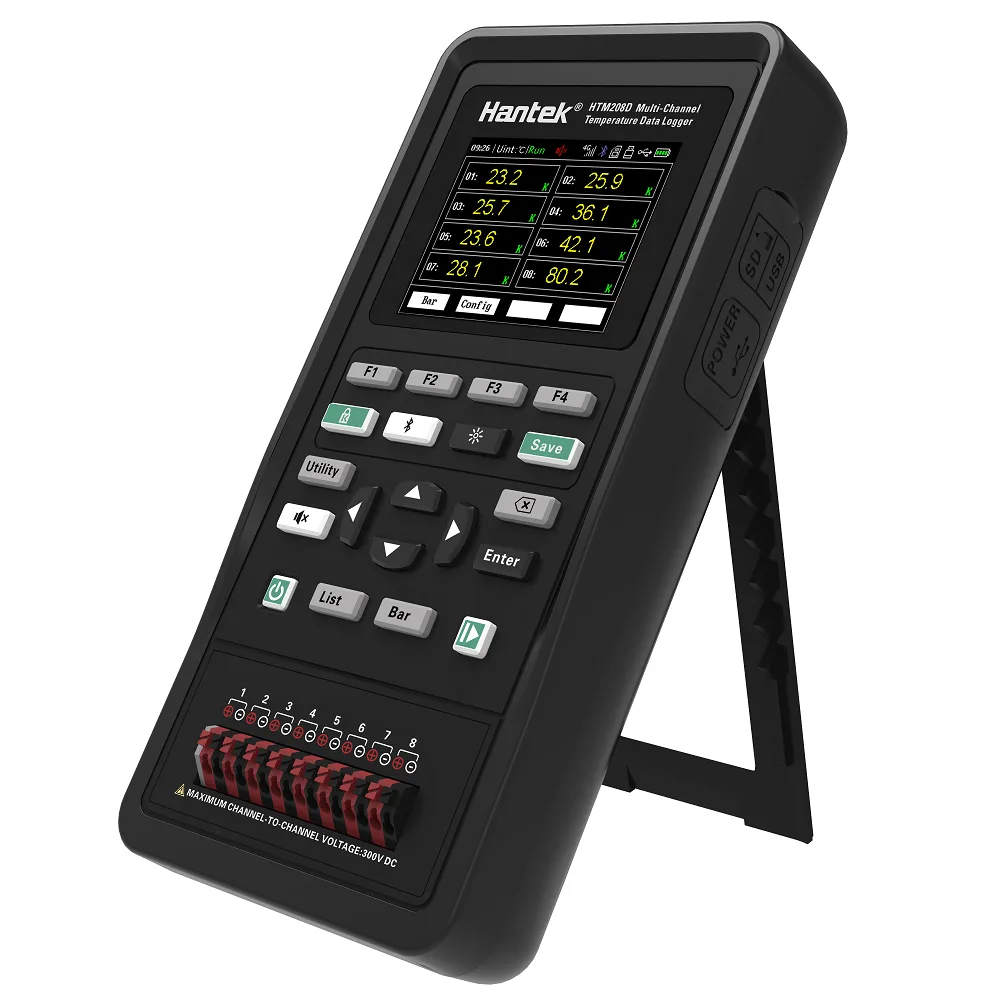

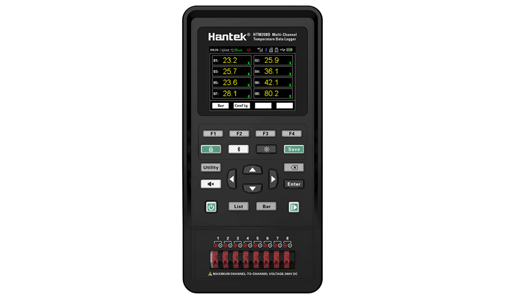

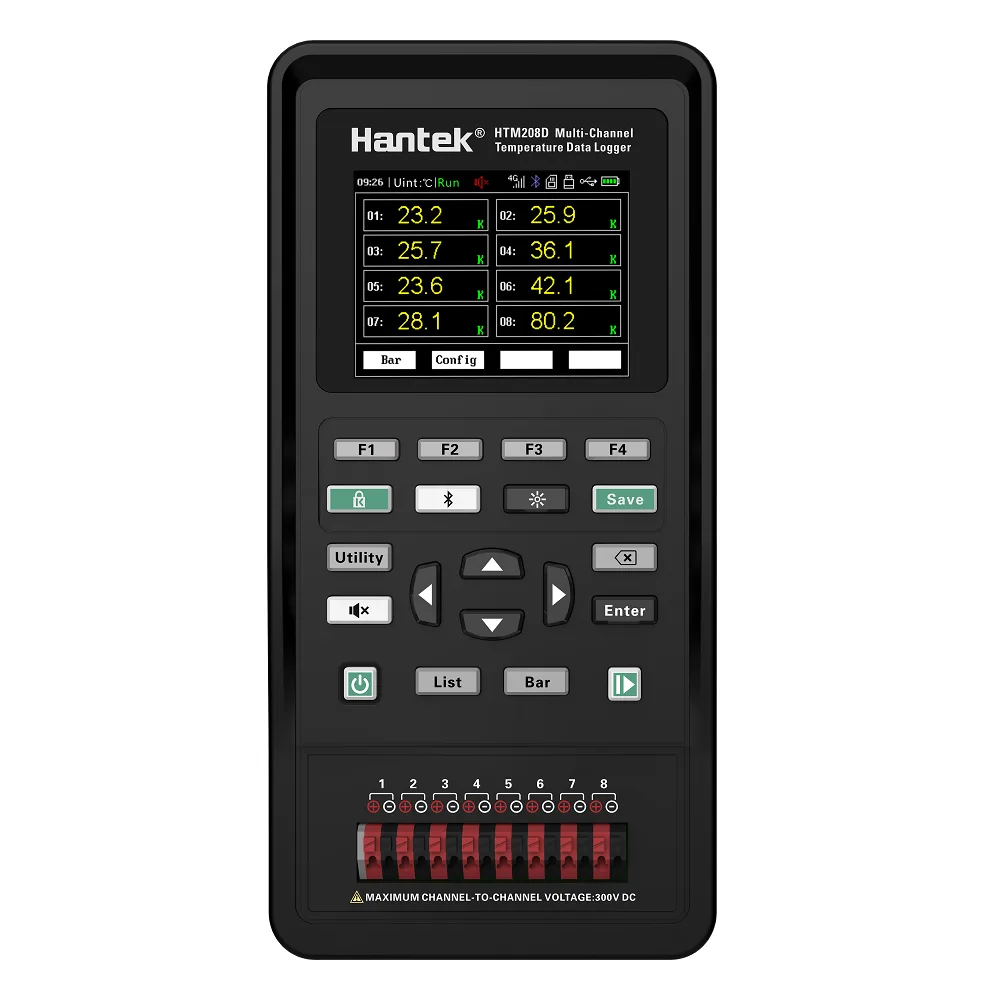

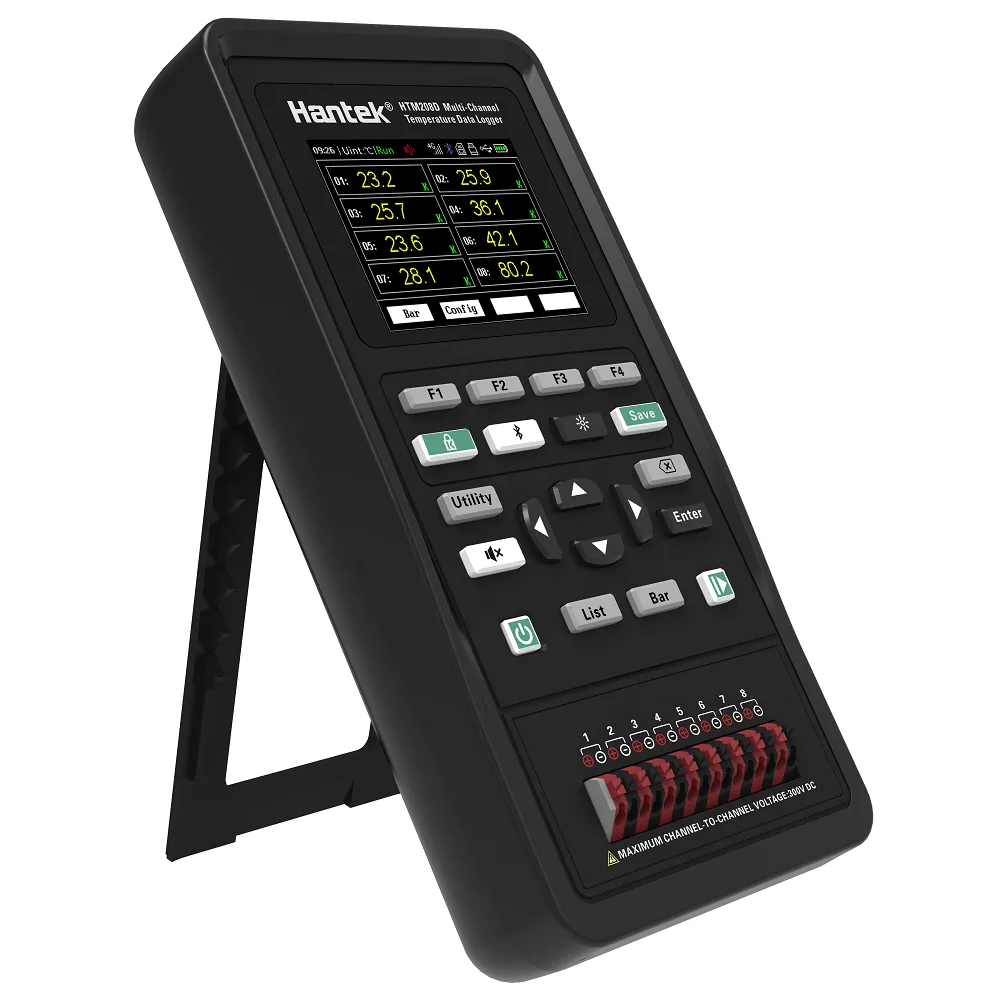

Portable with Rugged Industrial Design

• Shockproof, non-slip housing: the casing is designed to withstand impacts and ensure a secure grip even in demanding conditions.
• Compact design: small dimensions for easy transport and unobtrusive use.
• Durable silicone keypad: comfortable to the touch, hard-wearing and optimised for intensive use.
• Custom key layout: designed to provide simple, intuitive operation, reducing the learning curve and boosting efficiency.

High-Definition TFT Display for Precise Monitoring

• 2.8-inch colour TFT screen: 320×240 pixel resolution for sharp, well-defined images.

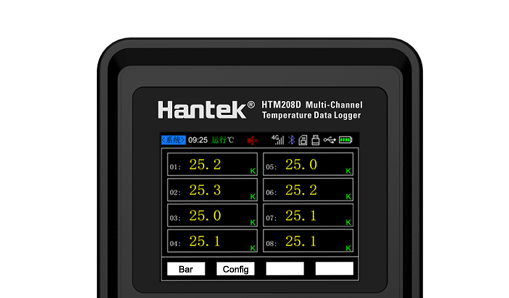

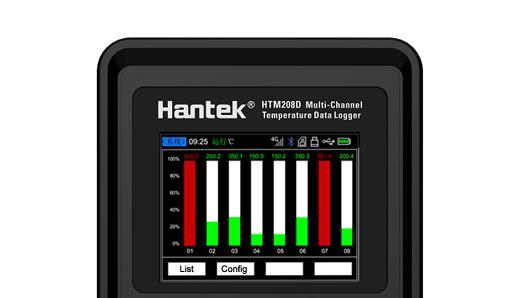

• Intuitive display: makes it easy to switch from a list view of the data to a bar-graph view.
• Real-time monitoring: dynamically shows changes in multi-channel signals, ideal for immediate analysis of the measurements.

Support for 11 Types of Thermocouples

• Supported thermocouples: J, K, T, E, S, N, B, R, A, C, D (two test leads with K-type probes included).
• Flexibility: compatibility with multiple sensor types lets engineers choose the thermocouple type best suited to their needs.
• Wide measurement range: supports temperatures from -200°C to 2480°C (depending on the thermocouple type).

Datalogger with USB Communication

• USB Type-C communication: enables fast, efficient charging and data transfer alike.

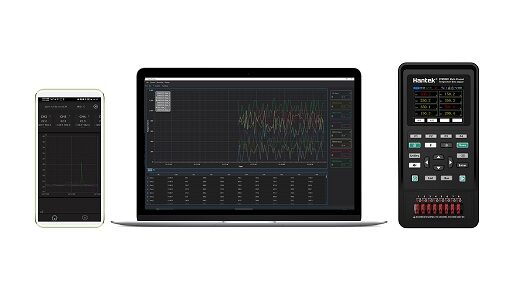

• Cross-platform compatibility: supports real-time monitoring via Windows terminals and Android smartphones, offering immediate and precise data analysis.

Intuitive Over-Temperature Alarm Control

• Built-in alarm function:
  • The alarm is enabled by default to warn when the temperature exceeds the set limits (upper or lower).
  • A continuous beep (long beep) sounds if the limits are exceeded.
• Single-button control:
  • Lets you quickly enable or disable the alarm, making it easier to manage while working.

Fast Monitoring and Temperature Anomaly Tracking

• Anomaly tracking:
  • Quickly identifies abnormal temperature changes across all monitored channels.
  • Lets you immediately view variations against the set limits.

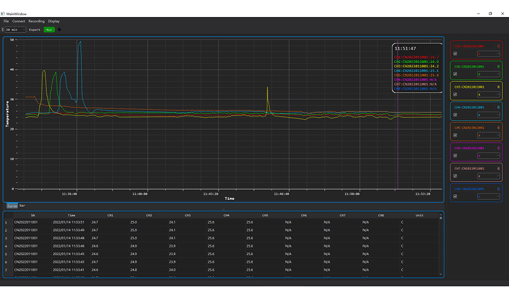

• Comprehensive software:
  • Compatible with Windows and Android systems for detailed data analysis and control.
  • Quick reading of each channel’s temperature through an intuitive interface.
• USB Type-C communication:
  • Fast, stable data transfer via the Type-C connection, essential for uninterrupted operation.

General Product Features

• Supported thermocouple types: 11 (J, K, T, E, S, N, B, R, A, C, D).
• Temperature measurement range:
  • Type K: -200°C to 1370°C.
• Measurement accuracy (type K thermocouple):
  • -200°C to 0°C: ±1.2°C.
  • 0°C to 1370°C: ±0.8°C (excluding thermocouple error).

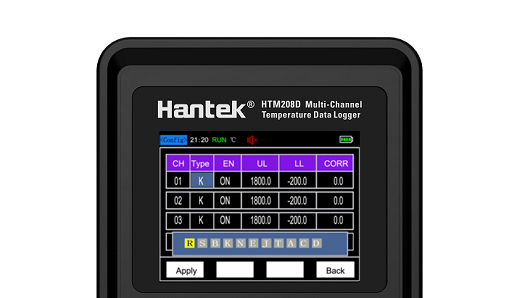

• Correction: every channel can be corrected.

Functions:

• Display: colour TFT-LCD screen, 2.8-inch, with support for display in list and bar-graph mode.
• Alarms: configuration of upper and lower limits with alarm.
• Communication interface: USB Type-C, compatible with the SCPI instruction set.
• Supported software: compatible with Windows and Android for data acquisition.

Safety and durability:

• Maximum voltage between channels: 300VDC.
• Maximum input voltage per channel: ±75VDC.
• Plug-in terminals: E0308 type.

General characteristics:

• Warm-up time: >30 minutes.

Power supply and battery:

• Power requirements:
  • Input: 100~240VAC, 50Hz/60Hz.
  • Output: 5V/2A DC.
• Battery: two 3.7V 18650 lithium batteries.
• Battery life: >15 hours.
• Power consumption: 1W.

Dimensions and weight:

• Dimensions: 200mm x 98mm x 40mm.
• Weight: 600g.

.

• User manual (English)
• PC software
• Android app
