12V Twilight Switch

12V twilight switch with adjustable light threshold. The relay can handle 220V loads

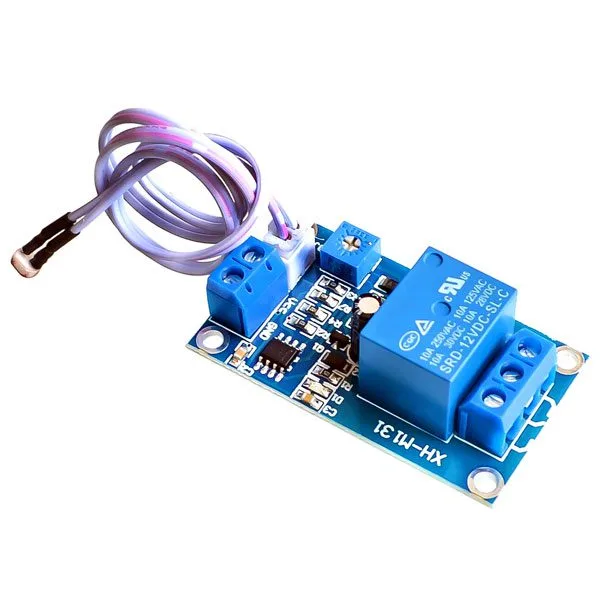

12V Twilight Switch - Image 1

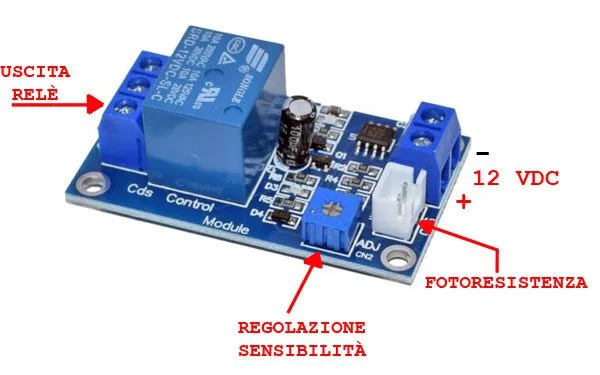

12V Twilight Switch - Image 3

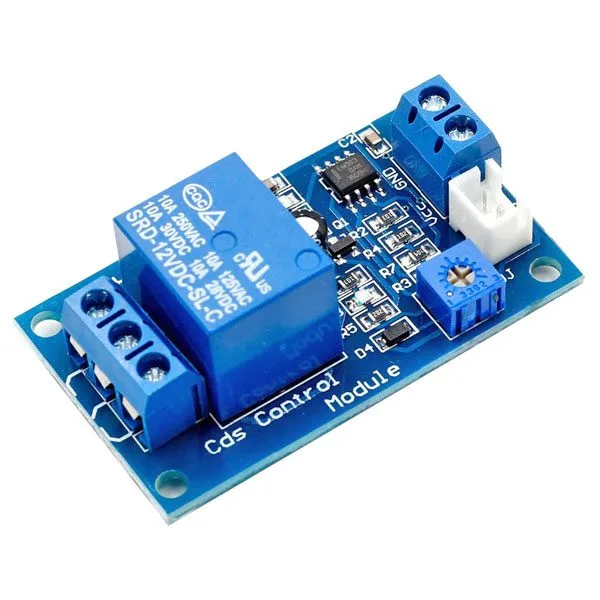

12V Twilight Switch - Image 4

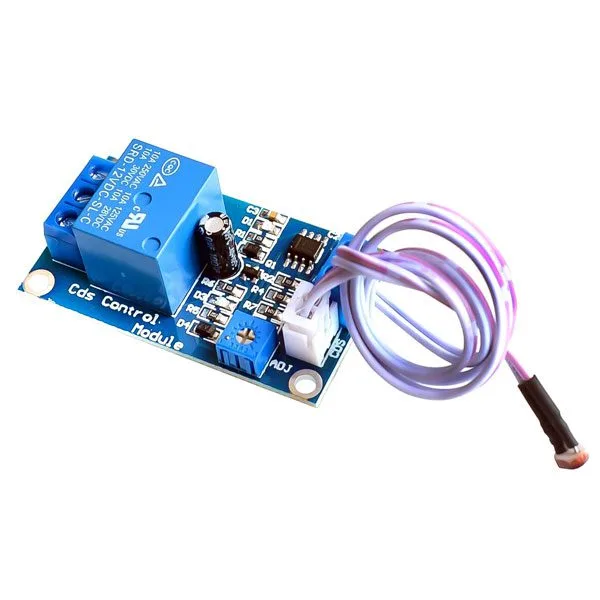

12V Twilight Switch - Image 5

SKU 8300-Y171EAN 8219671113090Item type: Assembled

Description

A 12V-powered dusk switch that automatically activates a load (lamps, etc.) when ambient brightness drops below a freely adjustable threshold (set via trimmer). The switch returns to its initial state as soon as brightness reaches the preset level. It features a relay with contact output (common, normally open, normally closed), status LEDs for power and relay activation. The package also includes a photoresistor with cable and connector.

Technical Specifications

Technical details

Power supply 12 VDC
Sensitivity adjustable via trimmer
Output relay contacts 10A/250VAC or 10A/30VDC
Dimensions (mm) 53x31x19
