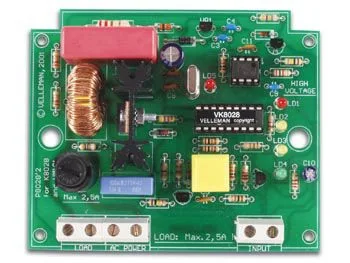

MULTIFUNCTION DIMMER

Description

Microcontroller-based technology with 13 different operating modes: pulse switch, staircase light control, slow on/off transition, timer, fan speed control, etc. Suitable for both resistive and inductive loads. Maximum connectable load 2.5A (550 W / 220 Vac). The board is also available already assembled complete with enclosure, code VM101 (not included in the kit).

FEATURES

• Microcontroller-based technology
• 13 different operating modes: pulse switch, staircase light control, slow on/off transition, timer, fan speed control, etc.
• Suitable for both resistive and inductive loads (light bulbs, high-voltage halogen lights and low-voltage halogen lights with ferromagnetic transformer)
• “Soft” turn-on extends the average lifespan of light bulbs
• Advanced safety system with fault indication automatically disables the module if the load proves too inductive
• Can be activated from different positions, simply by using the parallel wiring provided for the control buttons
• 2 delay times (each programmable within a range of 5 seconds to 2 hours) can be set through a learning mode
• Memory protected against power supply faults
• Fitted with a fuse and a button for selecting the operating mode
• Equipped with a “mains suppressor” in accordance with EN55015 regulations

SPECIFICATIONS

• Supply voltage: from 110V to 125V or from 220 to 240V AC; frequency 50Hz or 60Hz
