16 mm Vandal-proof Push Button – Red LED

Metal vandal-proof push button, OFF/(ON) type, with NC/NO/C contacts (normally open/closed and common) and LED illumination (+ and - contacts)

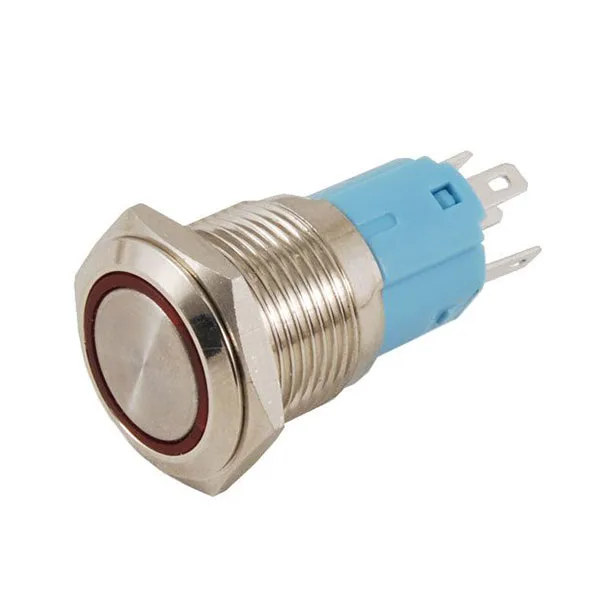

16 mm Vandal-proof Push Button - Red LED - Image 1

SKU 2846-PULSDEVREDEAN 8219671098557Colour: Red, SilverContact configuration: SPSTLighting: LEDSwitch action: (ON)-OFFItem type: Buttons & switches

Description

Metal anti-vandal push button, OFF/(ON) type, with NC/NO/C contacts (normally open / closed and common) and LED illumination (+ and – contacts). Illumination color: red, LED supply: 12 VDC, LED lifetime: > 40,000 hours, maximum contact voltage: 36 VDC / 2 A, operating temperature: -20°C ~ +55°C, humidity: 45 ~ 85% RH, insulation resistance: > 1000 Mohm, contact resistance: < 50 Mohm, mechanical life: 100,000 cycles (ON/OFF), electrical life: 20,000 cycles, body material: nickel-plated brass, mounting hole: Ø 16 mm, protection rating: IP65 / IK8 (mechanical impact resistance level).

Technical specifications

Technical details

Dimensions (mm) Ø 16 (mounting hole) x 35 (length) x 18.8 (nut)
Terminals solder
Contacts NC-NO-C
LED red
