16 mm Vandal-Resistant Rocker Switch – Yellow LED

Metal vandal-resistant OFF/ON switch with NC/NO/C contacts (normally open/closed and common) and LED illumination (+ and - contacts)
16 mm Vandal-Resistant Rocker Switch - Yellow LED - Image 1

SKU 2846-DEVIATYELEAN 8219671098540Colour: Silver, YellowContact configuration: SPSTHole size: 16 mmLighting: LEDSwitch action: ON-OFFItem type: Buttons & switches

Description

Switch metal vandal-resistant with OFF/ON mode and NC/NO/C contacts (normally open/closed and common), fitted with yellow LED illumination. The LED is powered at 12 VDC, with a lifespan of over 40,000 hours. The contacts support a maximum voltage of 36 VDC/2 A. The operating temperature range is -20°C to +55°C, with 45-85% RH humidity. Insulation resistance is greater than 1000 Mohm, while contact resistance is less than 50 Mohm. Mechanical life is 20,000 ON/OFF cycles and electrical life is 50,000 cycles. The body is made of nickel-plated brass, with a Ø16 mm mounting hole. The protection rating is IP65/IK8 (mechanical impact resistance level).

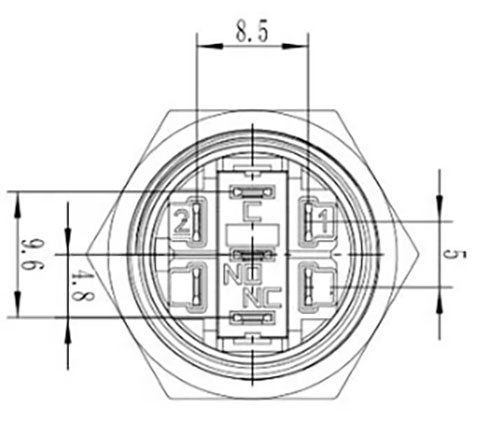

Pinout
Pulsanti serie deviat - pinout

Technical details

Dimensions (mm) Ø 16 (mounting hole) x 35 (length) x 18.8 (nut)
Terminals solder
Contacts NC-NO-C
LED yellow
