2-Channel Signal Generator and Frequency Counter – 60 MHz – Black
SKU 2860-JT-JDS6600BEAN 4250236817811Brand: Joy-ItProduct type: Oscilloscopes & signal analysisFunction generators
Description

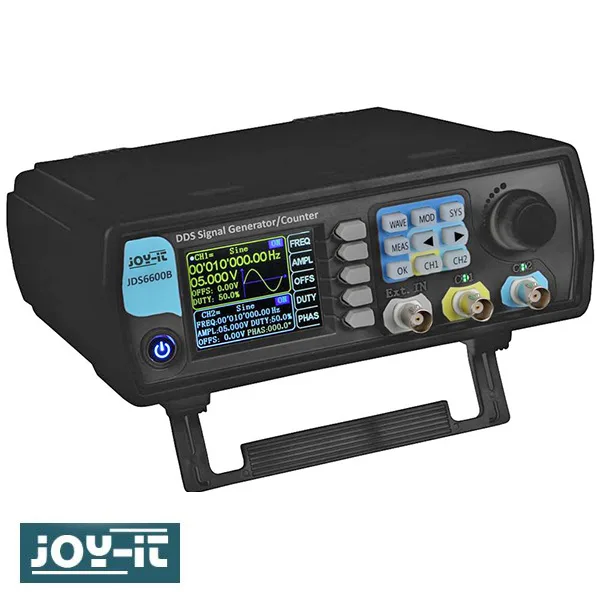

The JT-JDS6600B is a versatile 2-channel signal generator with a frequency range up to 60 MHz and a 2.4-inch color TFT LCD display. With high precision and stability, it offers various waveforms and also works as a frequency counter up to 100 MHz. It's ideal for circuit testing, environmental simulations and educational applications, and integrates easily with a PC via USB.

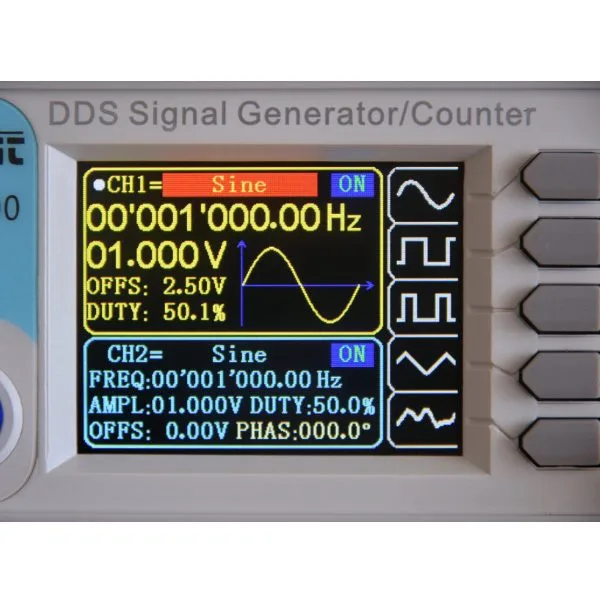

| The JT-JDS6600B 2-channel signal generator is an advanced device capable of generating signals up to 60 MHz in various waveforms, such as sine, square, triangle, pulse and half-wave, with excellent quality thanks to a frequency precision of ±20 ppm and a stability of ±1 ppm/3h. It features a 2.4-inch color TFT LCD display and offers an intuitive interface with menus available in German, English and French.

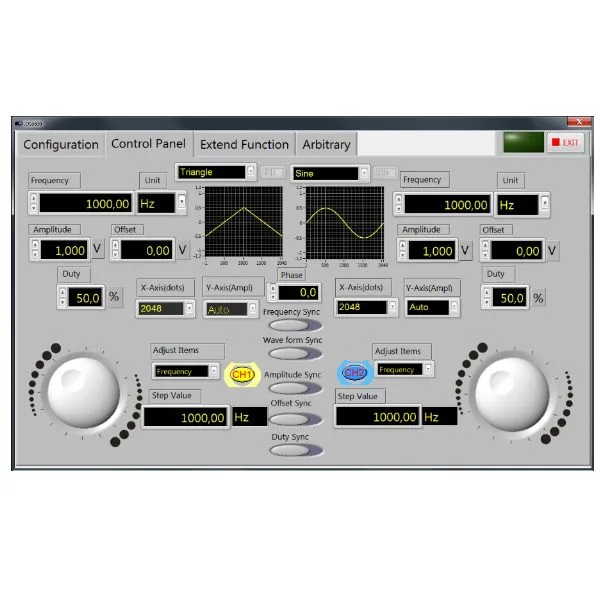

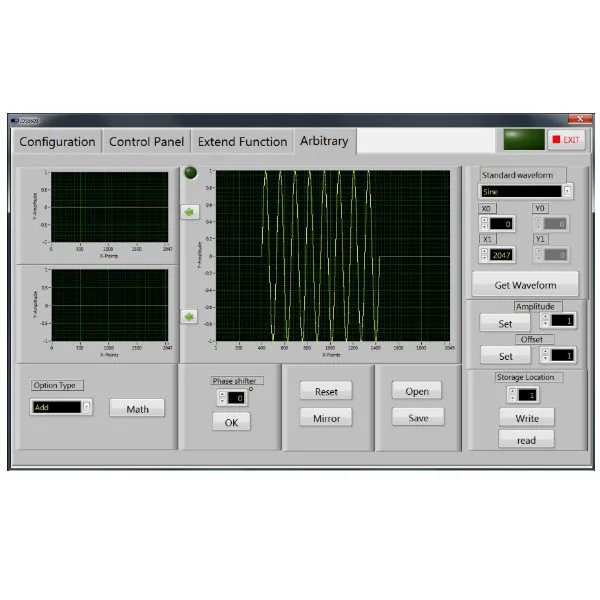

This 2-channel signal generator lets you create arbitrary waveforms and is equipped with a USB connection that, together with the free software, allows you to reproduce a virtual panel on a PC running Windows 7/10. In addition, the device can work as a frequency counter, reading signals up to 100 MHz via the input terminal. The JT-JDS6600B is used in various fields such as environmental signal simulation, circuit and IC testing, research, training, and use with analog sensors. The JT-JDS6600B comes complete with an Italian-language manual |
|
Technical specifications
|
|
| Download |
Technical details
| Case color | black |
|---|---|
| Channels | 2 |
| Max. output frequency | 60 MHz |
| Sine | 1 μHz ~ 60 MHz |
| Square-Triangle | 1 μHz ~ 15 MHz |
| Pulse | 1 μHz ~ 6 MHz |
| Arbitrary | 1 μHz ~ 6 MHz |
| Frequency resolution | 1 µHz |
| Reading frequency | 0 ~ 100 MHz |

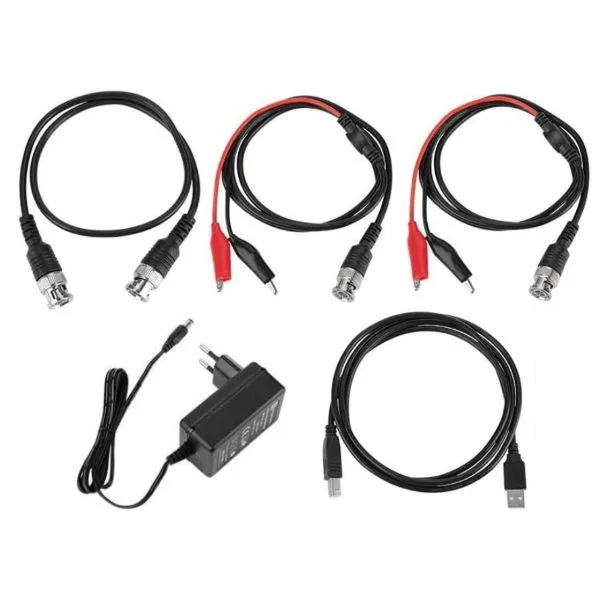

| Power supply | 5 Volt 2000 mA with 100~240 VAC mains adapter included |
| Display | 2.4" color TFT LCD |
| Weight | 780 grams |
| Dimensions (mm) | 194 x 178 x 69 mm |
