Function and Arbitrary Waveform Generator

PC-based function and arbitrary waveform generator with USB interface
Function and Arbitrary Waveform Generator - Image 1
Function and Arbitrary Waveform Generator - Image 3
Function and Arbitrary Waveform Generator - Image 4
Function and Arbitrary Waveform Generator - Image 5
Function and Arbitrary Waveform Generator - Image 6

SKU 6072-FAW1025GEAN 8219671077354Brand: HantekProduct type: Oscilloscopes & signal analysis,

Description

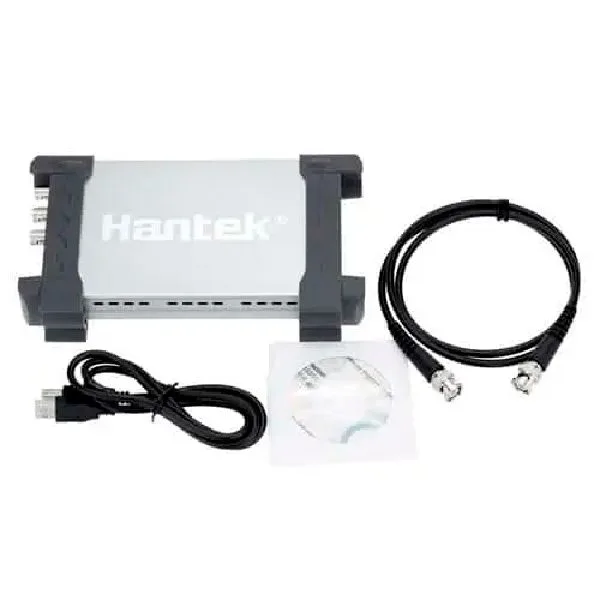

PC-based function and arbitrary waveform generator with USB interface. It uses DDS technology to deliver high-frequency accuracy, high-resolution waveforms, high reliability and extensive software support.

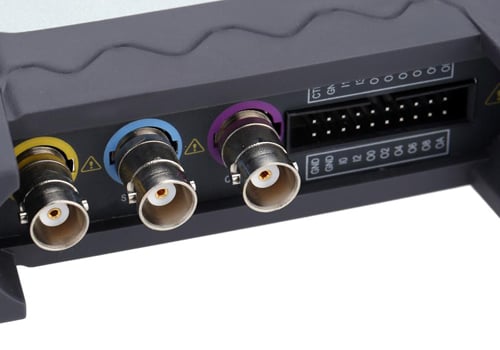

It provides an arbitrary waveform output, a signal synchronisation output that allows several units to be connected to the PC, a frequency counter input, a 6 bit input and an external trigger input. Sampling rate 200 MSa/s, vertical resolution 12 bit; 25 MHz arbitrary waveform output, sine wave up to 75 MHz, frequency counter up to 50 MHz.
The user can edit the arbitrary waveform with the mouse or select standard waveforms such as sine, square, triangle, sawtooth, TTL, white noise, Gaussian noise, trapezoid, AM and FM. Parameters such as amplitude, frequency and offset can be set. The data format is fully compatible with the Tektronix one: waveform data files produced by Tektronix oscilloscope software, or created with Tektronix waveform generation software, can be loaded directly and the signal displayed. Supported operating systems: Windows 7, Windows NT, Windows 2000, Windows XP. The package includes the function generator, the BNC-BNC cable and the USB cable.
Software screens

Technical specifications
  • Arbitrary waveform output
    – Waveform length 4 kSa/s
  • Frequency counter
    – Input impedance: > 100 kohm
    – Frequency range DC ~ 50 MHz
    – Input amplitude 400 mVpp ~ 18Vpp
  • General
    – Temperature: from 0°C to +70°C
    – Humidity: from 0% to 95%
    – Dimensions (mm): 210x120x40
    – Weight: 300 grams
Download

Technical details

Waveform frequency DC~25 MHz
DAC clock adjustable from 2 kHz to 200 MHz
Channels 1
Vertical resolution 12 bit
Frequency stability <30 ppm
Amplitude approx. 3.5 V Max
Output impedance 50 ohm
Output current 50 mA Ipeak = 50 mA
System bandwidth 25 MHz
Waveform distortion -50dBc (1 kHz), -40dBc (10 kHz)
Frequency range DC~50 MHz
Input signal amplitude from 400 mVpp to 18 Vpp
Coupling DC
Accuracy time base error + 1 Count
