NE555 Frequency Generator

Based on the 555 IC (SMD version), this small module generates a square-wave signal from 3.7 Hz to 1.3 kHz, adjustable via the dedicated multi-turn trimmer

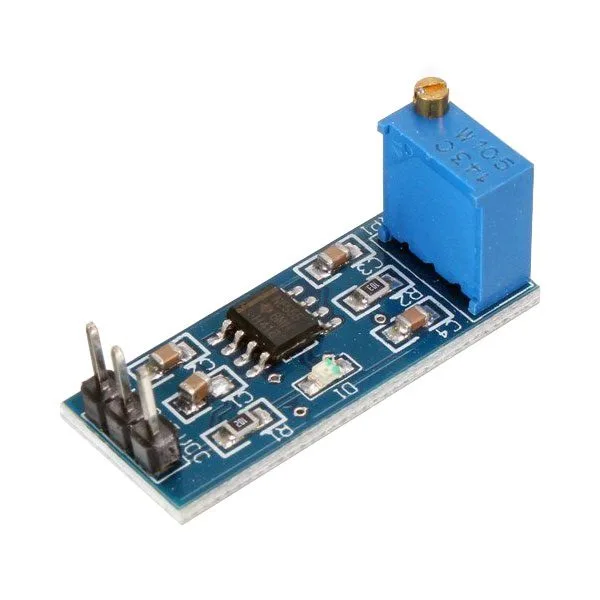

NE555 Frequency Generator - Image 1

SKU 1606-GEN555EAN 8219671111768Product type: Oscilloscopes & signal analysisBrand: Various

Description

Based on the 555 integrated circuit (SMD version), this small module generates a square wave signal from 3.7 Hz to 1.3 kHz, adjustable via the dedicated multi-turn trimmer. The module also features a power status LED.

Electrical Schematic

Documentation and Useful Links

Technical details

Power supply 5 to 12 VDC
dimensions (mm) 29x12x12
