Waveform generator 10 Hz – 450 kHz

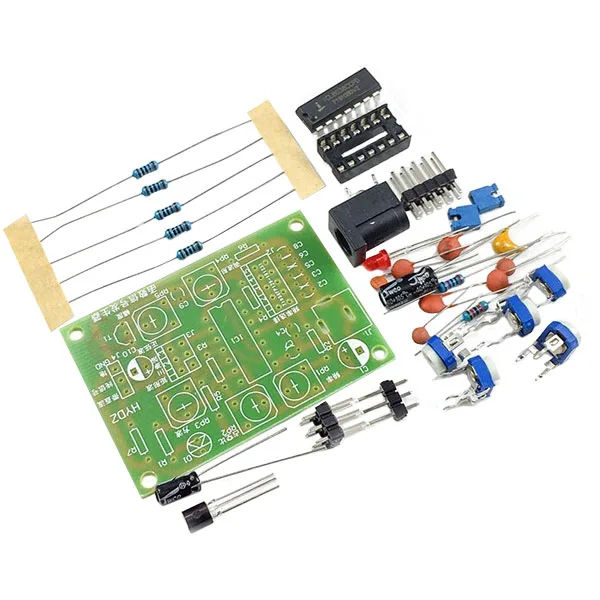

Waveform generator kit from 10 Hz to 450 kHz, based on the ICL8038 chip.
SKU 7100-FT1634KEAN 8219671107044Item type: Assembled, KitFunction generators
Description

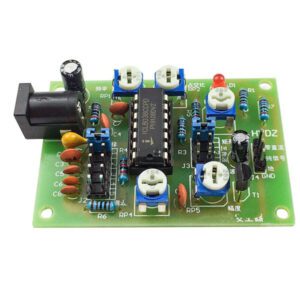

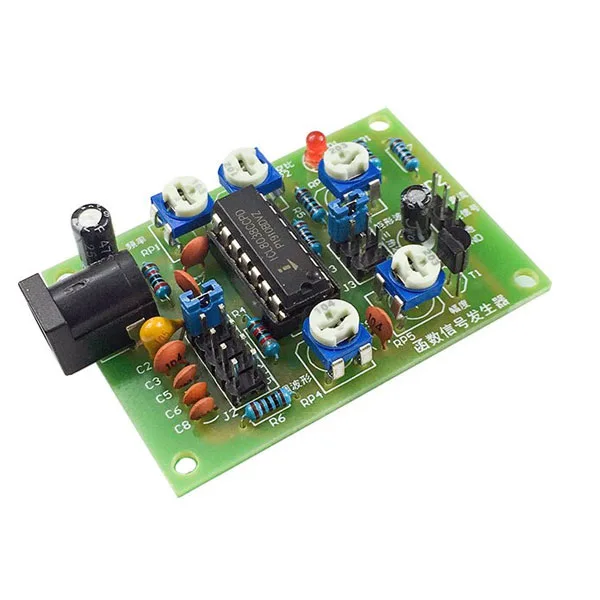

| Waveform generator kit based on the ICL8038 chip. It can generate sine, triangle and square wave output signals. It has 5 different frequency ranges (10 Hz to 450 Hz, 90 Hz to 1.5 kHz, 940 Hz to 15 kHz, 5 kHz to 120 kHz, 20 kHz to 450 kHz) selectable via jumper, a power status LED, and 5 adjustment trimmers (frequency, duty cycle, square wave, sine wave, output amplitude). Power supply: from 12 to 24 VDC. |
  |
 |
| Documentation and useful links |
