4 relay module 5 Vdc 10A (assembled)

Module with 4 relays for switching the load connected to them on and off, 240V/10A (max)

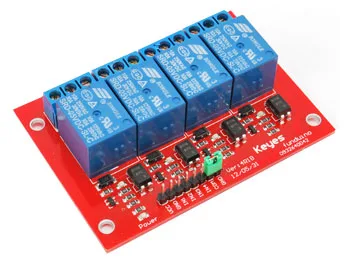

4 relay module 5 Vdc 10A (assembled) - Image 1

SKU 2846-RELAY4CHEAN 8219671059602Item type: Assembled

Description

This 4 channel relay module switches up to 4 loads on and off, with a maximum rating of 240V/10A. Its opto-isolated inputs give high protection against electrical interference, while the status LEDs make it easy to follow what the relays are doing. Powered at 5 Vdc, it has N.O. – Common – N.C. output contacts rated 10A 250Vac – 10A 30Vdc. Its compact size (77.50x55x19 mm) makes it ideal for a wide range of applications.

Technical details

Power supply 5 Vdc
Number of relays 4
Output contacts N.O. - Common - N.C
Contact rating 10A 250Vac - 10A 30Vdc
Trigger voltage 2.5 - 5 Vdc
Dimensions (mm) 77.50x55x19
