4-channel IR receiver with remote control
Set consisting of an IR remote control and a 4-channel momentary receiver
SKU 2846-RX4IRTXEAN 8219671067218Item type: AssembledControl electronics, Infrared
Description

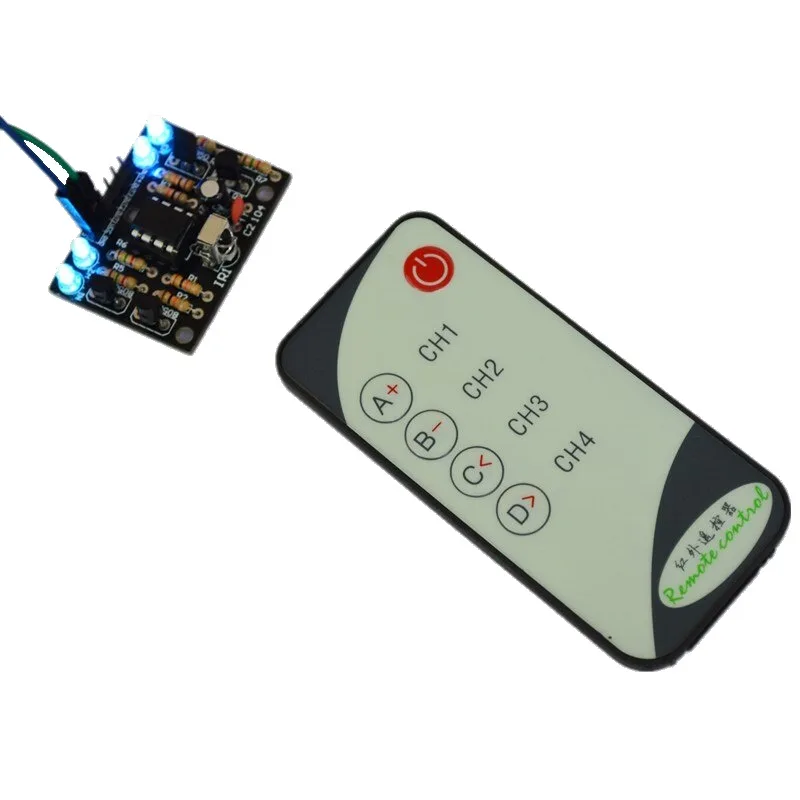

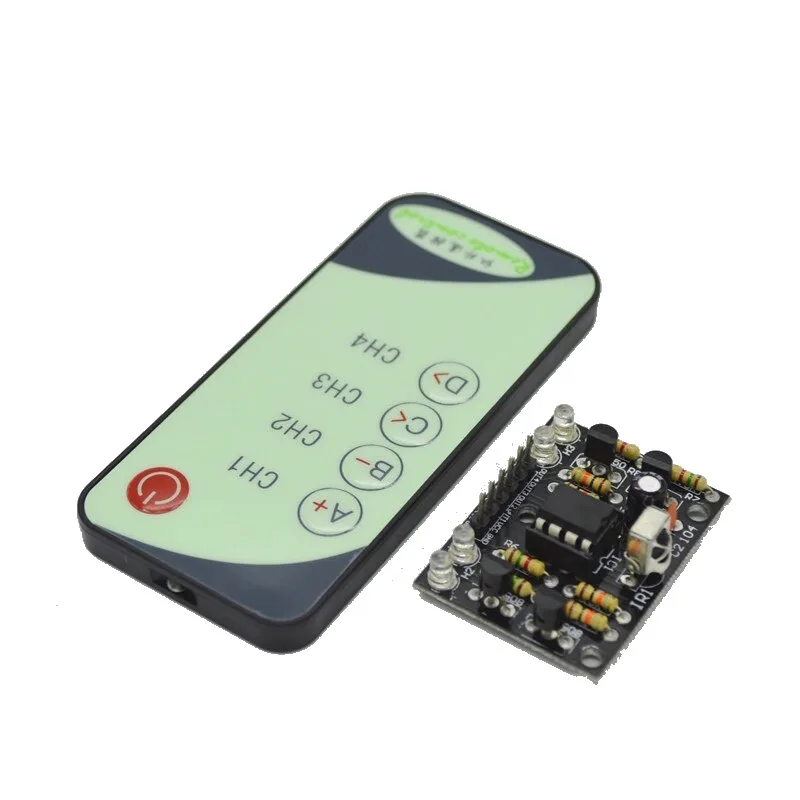

| This kit, made up of a 4-channel IR receiver and a 4-button remote control, is the ideal solution for anyone who wants to control electrical loads, lights or automation without wires. Momentary (monostable) operation. Thanks to infrared technology the system responds immediately and installs quickly, which makes it perfect for DIY, light home automation and modelling. With a range of about 5-8 metres the IR system gives good coverage, letting you control your devices from different positions with no connectivity problems.

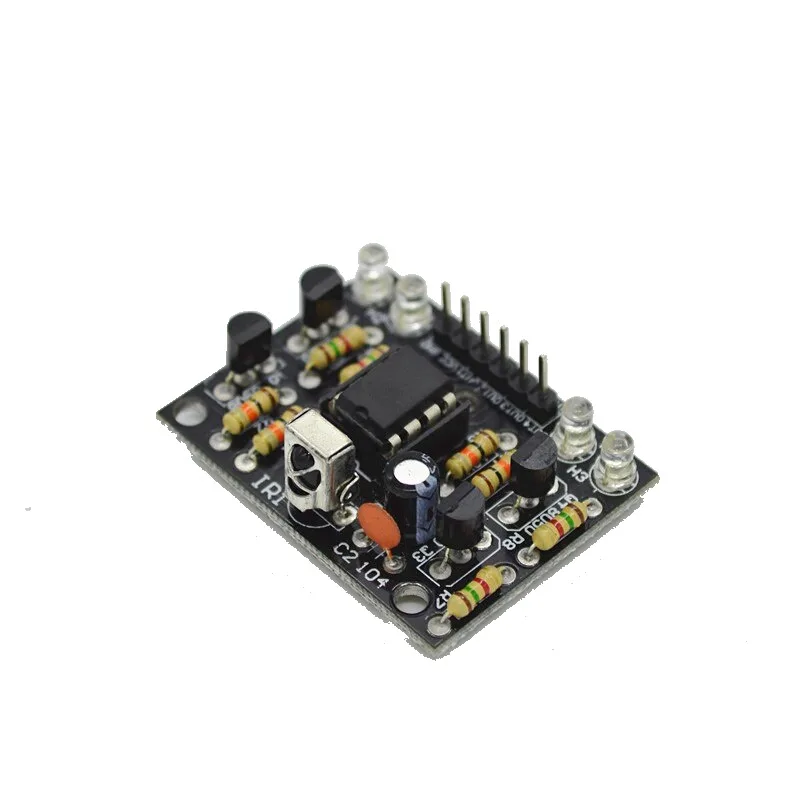

The receiver, powered from 3 V to 5 V, is flexibly compatible with a wide range of electronic devices. The remote control also comes with a 3V CR2025 battery included, so you can use it straight away. The receiver measures just 38 x 29 x 12 mm, while the remote control is 85.5 x 40 x 6.5 mm. That makes them handy to use and easy to carry wherever you go. Note: please be aware that all the “Receiver + Remote control” sets of this model share the same IR identification code. |
|
|
Useful information
|
|
| A key point about this product is its shared coding. All the remote controls of this model send the same IR signal. The advantage? If you buy several kits you can control several receivers at once with a single remote control. It is the perfect solution if you want to switch on several lights together, or trigger different pieces of automation in the same room with one press. (Note: if they are installed close to each other, all the receivers will respond to the same pulse). |
|
|
Technical specifications
|
|
|
|
Technical details
| Operating voltage | 3V to 5V DC |
|---|---|
| Transmission technology | Infrared (IR) |
| Number of channels | 4 |
| Signal range | About 5-8 metres (line of sight, no obstacles) |
| Output type | Momentary (monostable) |
| Output | 5V when it receives the signal from the IR remote control |
