4G LTE-2G GPS Tracker – Compact Size – 1500 mA Battery

The web platform and the app can manage several devices (a fleet) or a single device; see the section on registering a new account.

The device has a built-in 1500mAh lithium-ion battery giving up to 4 days of runtime in normal operating mode and up to 15 days in hibernation mode. This means it can run for a long time without needing a recharge. It is also built to IP65 protection rating, which makes it resistant to water splashes and dust.

The tracker offers a wide range of functions:

• Overspeed alarm function, which warns the user when the vehicle goes over the preset speed.
• Geo-fence function, which lets you set a virtual area on the map and get a notification when the vehicle leaves or enters that area.
• Vibration alarm function, which automatically detects accidents or damage to the vehicle thanks to the built-in 3D acceleration sensor.
• Voice monitor function: the device has a high-sensitivity microphone that allows ambient listening around the device. This means the user can listen to live audio whenever needed. Available on 4G networks through VoLTE.
• Movement alarm function: it sends an alert when the vehicle carrying the device is moving. This means the user is warned at once in the event of theft or unauthorised movement of the vehicle.
• Historical route playback function, which stores the journeys of the last 6 months so they can be searched by date and shown on the map.
• Blind Network with memory function, which saves the coordinates (5000 points) when there is no internet connection. The stored coordinates are uploaded automatically as soon as network coverage comes back
• Low battery alarm: the tracker sends an alarm, through the APP or the WEB platform, when the battery is low.

The package includes the tracker, the user manual and the USB Type-C cable.

Important! Ambient listening through the Voice monitor function needs a SIM card with data and voice traffic compatible with VoLTE. Check with your mobile operator that this technology is available on the SIM you are using. Without that service, ambient listening would not be possible while connected to the 4G network.

It has no SOS alarm button.

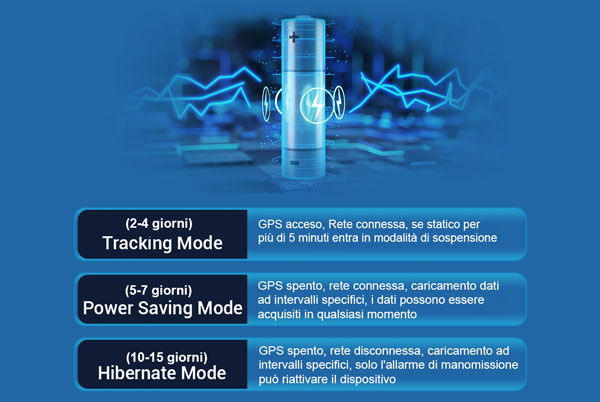

• Battery life:
  • about 2-4 days in tracking mode at one-minute intervals
  • 5-7 days in power saving mode
  • 10-15 days in hibernation mode, “Hibernation mode”

• SIM Card: Nano SIM Card (enabled for VoLTE)
• Positioning: GNSS+ AGPS+ LBS
  • GNSS: Global Navigation Satellite System, meaning the global satellite navigation systems such as GPS (Global Positioning System), GLONASS (Global Navigation Satellite System) and Galileo. These systems use a constellation of satellites to work out the position of the device on Earth.
  • AGPS: Assisted Global Positioning System, a technology that assists GPS using extra information supplied by a cellular network. That information can include ephemeris data (the predicted position of the satellites) and details of the cellular base stations, which can speed up GPS signal acquisition and improve positioning accuracy.
  • LBS: Location-Based Services, meaning position-based services that use a range of technologies to work out where a device is, such as GPS, Wi-Fi and cellular networks. These services provide features such as navigation, asset tracking, location information and much more.
• Time to first fix from start-up: =< 32 seconds
• Hot start: =< 1 second
• Tracking sensitivity: – 162dBm
• GPS channels: 32

• Vibration: the tracker has a built-in 3D acceleration sensor that lets it send an alarm, through the APP or the WEB platform, in the event of an accident or damage to the vehicle. It works when the vehicle is parked.
• Movement: the tracker lets you set an area within which the vehicle may be moved. If, for example, a 500 metre limit is set and the vehicle is moved outside it, the device sends an SOS alarm to the preset telephone numbers. This means you are warned promptly if the vehicle is stolen or moved without authorisation.
• Geo-fence: lets you set a virtual area around a specific geographical position. This area is called a “safety circle” and is the area within which you want to keep the monitored device or person. When the GPS device enters or leaves the area, the user gets a notification by SMS. The geo-fence function is very useful for keeping track of people or objects that should not leave a given area. Parents, for example, can set a geo-fence around their children’s school so they are warned when the children leave the school grounds. In the same way, companies can use geo-fences to keep track of their vehicles or their equipment.
• Low battery: the tracker sends an alarm, through the APP or the WEB platform, when the battery is low.

The web platform micodus.net and the free app that goes with it can manage a single GPS device or a whole fleet efficiently. They allow real-time monitoring of the position and activity of several devices at once, giving total control over your fleet.

To use the platform and the app you have to register.
To manage a fleet, register every device to be tracked by its IMEI/ID, then create an account with a User Name and a Password and add the trackers you created earlier.
To manage a single device, simply register by entering the device IMEI/ID code and a Password.

• Localizzatore GPS 4G LTE / 2G GSM/GPRS/EDGE
• USB Type-C cable
• User manual

• User Manual (Italian)
