50 kg load cell
Load cell made of a metal body and small elements called strain gauges bonded at precise points on that body
SKU 2846-LC50KGEAN 8219671081672Item type: AssembledSensors
Description

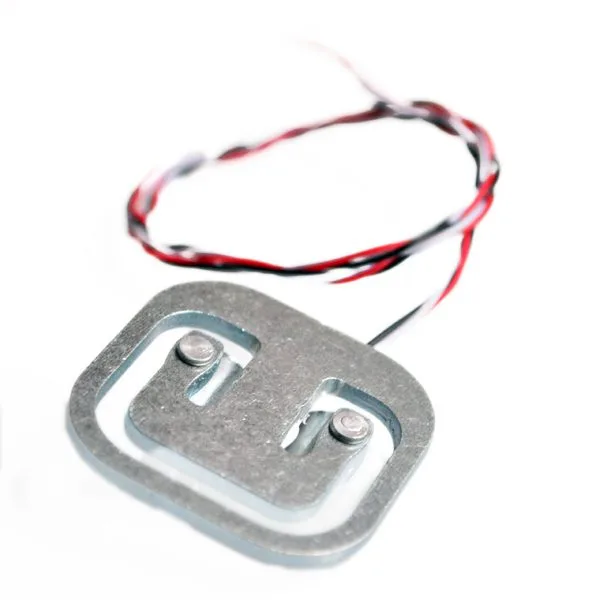

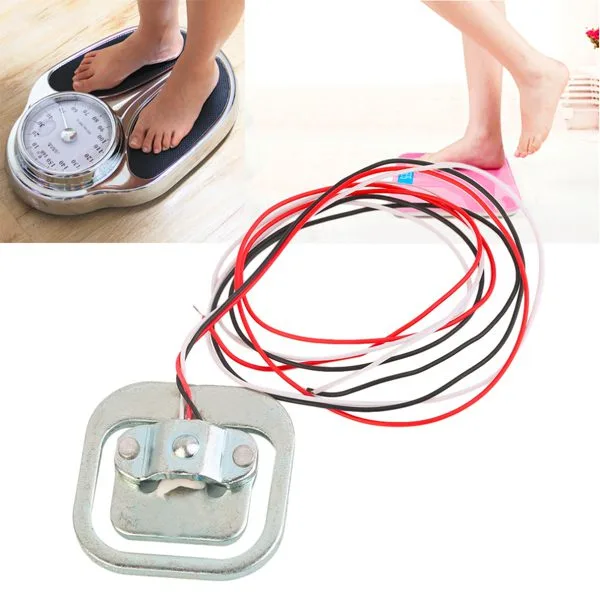

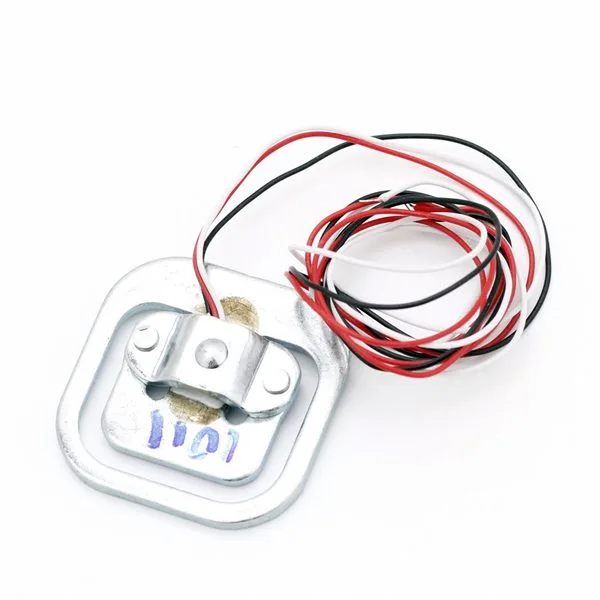

A load cell consisting of a metal structure and small elements called strain gauges mounted at precise points on the structure. It provides an output electrical signal that varies according to the deformation produced by the force applied to the component. The most common applications are: electronic scales, piece counters, postal parcel scales, and all varieties of single-cell commercial scales.

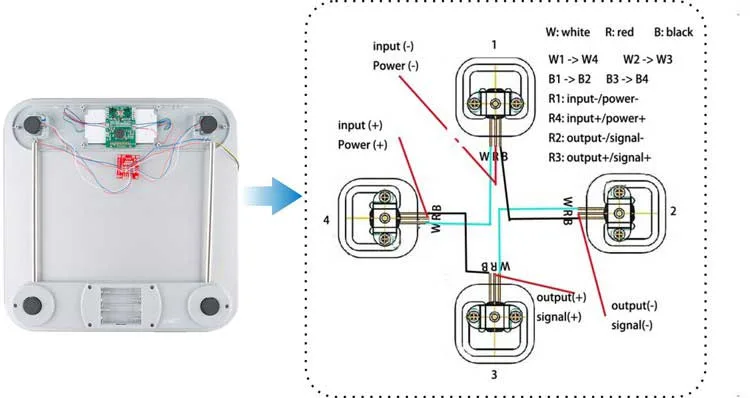

Warning! It is necessary to connect 4 cells of this type, as per the diagram below, to be able to use them.
Technical specifications
- Weight: 19 grams
- – red wire Positive
– black wire Negative
– white wire OUT
Technical details
| Capacity | 50 kg |
|---|---|
| Output sensitivity | 1 mV / V (±0.1) |
| Non-linearity | 0.05 (% of Full Scale) |
| Hysteresis | 0.05 (% of Full Scale) |
| Repeatability | 0.05 (% of Full Scale) |
| Creep after 1 minute | 0.1 (% of Full Scale) |
| Temperature effect on output | 10°C (0.1% of Full Scale) |
| Temperature effect on zero | 10°C (0.3% of Full Scale) |
| Input resistance | 1 kohm (±10) |
| Output resistance | 1 kohm (±10) |
| Insulation resistance | >2000 Mohm |
| Operating temperature | from -10°C to +50°C |
| Excitation voltage | 10 Volts |
| Dimensions (mm) | 34x34x8 |
