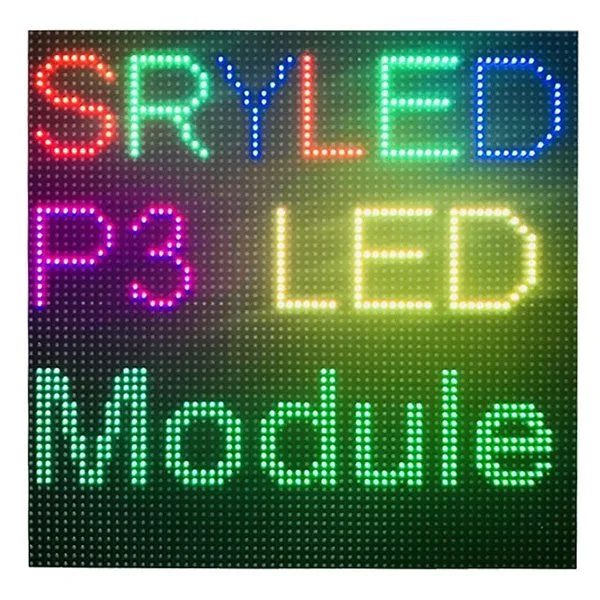

64×64 RGB LED Panel, 3 mm Pitch
4,096 individually addressable LEDs for text and animations: it measures 192 x 192 mm and daisy-chains to further identical panels.
SKU 3085-RGBLEDPAN64643EAN 8219671121958Displays
Description
Paired with Arduino, Raspberry Pi, or another microcontroller, this panel featuring 4096 (64×64) 3 mm RGB LEDs allows you to create animations, text, drawings, and more. It has two IDC connectors, one as input and the other as output, allowing multiple panels to be daisy-chained to form even larger screens. Power supply: 3.3 V – 5 V / 2A.
The package includes the LED panel, the power cable, and a flat cable with 16-pin (2×8) IDC connectors. Dimensions (mm): 192x192x14.5.
Technical specifications
- Humidity: 10%-90% RH
Documentation and useful links
Technical details
| Power supply | 3.3 V - 5 V / 2A |
|---|---|
| Dimensions (mm) | 192x192x14.5 |
| Pixel pitch | 3 mm |
| LED case | SMD2121 |
| Module resolution | 64 dots x 64 dots |
| Drive mode | 1/32 scan |
| Constant current LED driver | ICN2037 or equivalent |
| Brightness | >1200 cd/m² |
| Viewing angle | H:140°; V:140° |
| Refresh rate | 1920 Hz (adjustable via software) |
| Average life | >100,000 hours |
| Protection rating | IP43 |
| Operating temperature | -20°C to +50°C |
| Storage temperature | -30°C to +70°C |
