AC voltage converter with ZMPT101B

Built around the ZMPT101B single-phase voltage transformer, this module measures an AC voltage (max

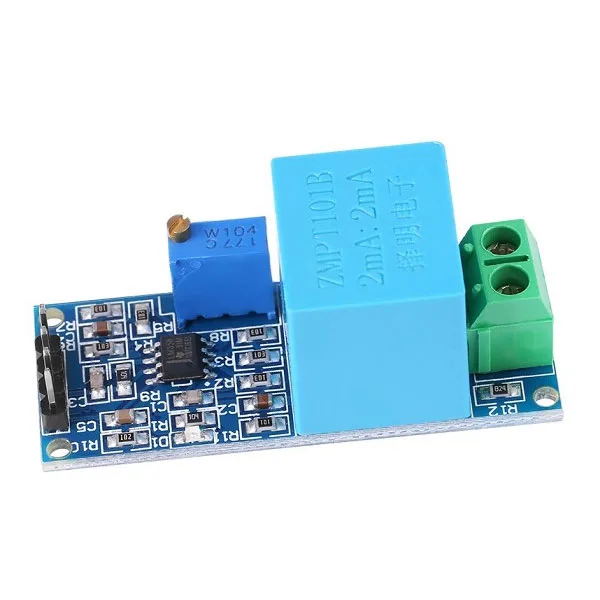

AC voltage converter with ZMPT101B - Image 1

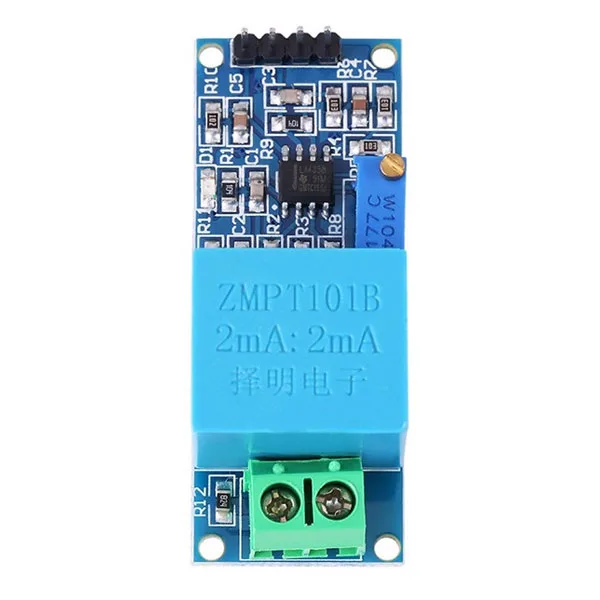

AC voltage converter with ZMPT101B - Image 3

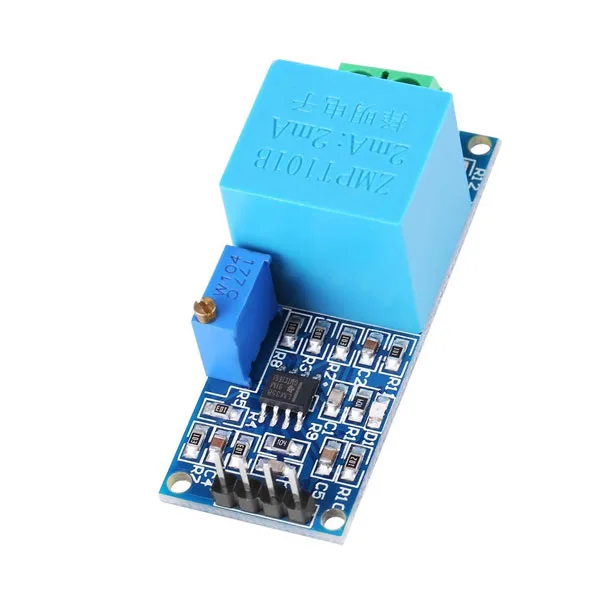

AC voltage converter with ZMPT101B - Image 4

SKU 1606-HR1232EAN 8219671117753Item type: Assembled,

Description

Built around the ZMPT101B single-phase voltage transformer, this module measures the AC voltage (max. 250 volts) applied to its input, scaling it down and making it available as an analogue output. The output signal is sinusoidal and the mean value of the waveform (DC component) is 1/2 VCC. The output signal can be adjusted with the trimmer on the module. Ideal for building an energy meter. It can be used together with Arduino, Fishino and Raspberry Pi.
Documentation and useful links

Technical details

Supply voltage 0 to 12 VDC
Input voltage max. 250 VAC
Output sinusoidal, mean value of the waveform (DC component) is 1/2 VCC
Size (mm) 51.8x22x20
Operating temperature -40°C to +70°C
