Anti-vandal selector switch 16 mm – blue LED

Metal anti-vandal OFF/ON selector switch with NC/NO/C contacts (normally open / closed and common) and LED illumination (+ and - contacts)

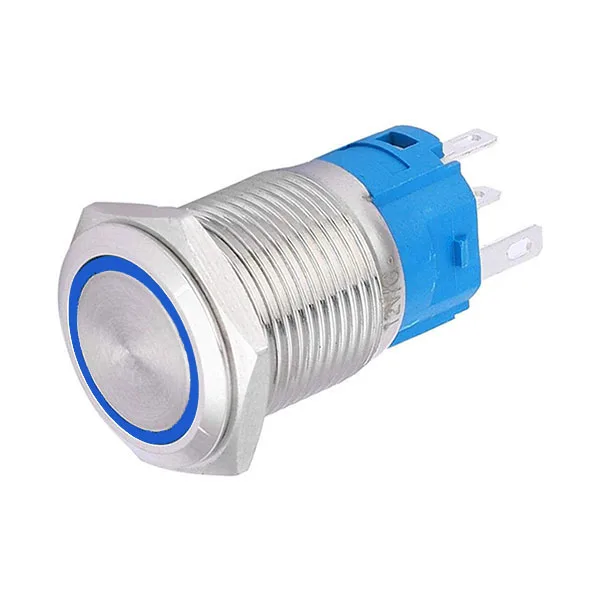

Anti-vandal selector switch 16 mm - blue LED - Image 1

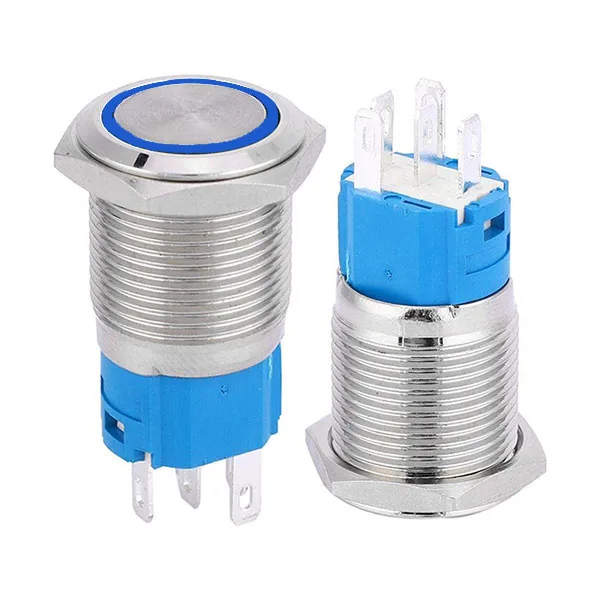

Anti-vandal selector switch 16 mm - blue LED - Image 3
Anti-vandal selector switch 16 mm - blue LED - Image 4
Anti-vandal selector switch 16 mm - blue LED - Image 5

SKU 2846-DEVIATBLUEAN 8219671105835Colour: Blue, SilverContact configuration: SPSTHole size: 16 mmLighting: LEDSwitch action: ON-OFFItem type: Buttons & switches

Description

Metal anti-vandal selector switch of the OFF/ON type with NC/NO/C contacts (normally open / closed and common) and LED illumination (+ and – contacts). Illumination colour: blue, LED supply: 12 VDC, LED life: > 40,000 hours, maximum contact voltage: 36 VDC / 2 A, operating temperature: -20°C ~ +55°C, humidity: 45 ~ 85% RH, insulation resistance: > 1000 Mohm, contact resistance: < 50 Mohm, mechanical life: 20,000 cycles (ON/OFF), electrical life: 50,000 cycles, body material: nickel-plated brass, mounting hole: Ø 16 mm, protection rating: IP65 / IK8 (mechanical impact resistance level).
Pinout
Pulsanti serie deviat - pinout

Technical details

Dimensions (mm) Ø 16 (mounting hole) x 35 (length) x 18.8 (nut)
Terminals solder
Contacts NC-NO-C
LED blue
