Anti-vandal switch 16 mm – white LED

Metal anti-vandal OFF/ON switch with NC/NO/C contacts (normally open / closed and common) and LED illumination (+ and - contacts)

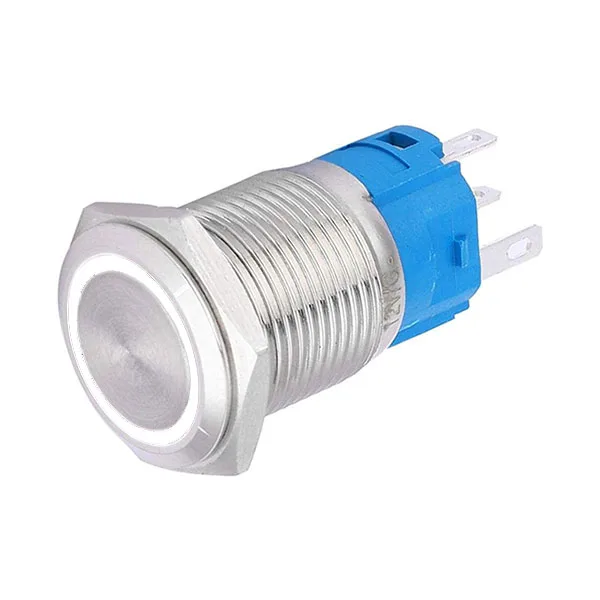

Anti-vandal switch 16 mm - white LED - Image 1
Anti-vandal switch 16 mm - white LED - Image 3

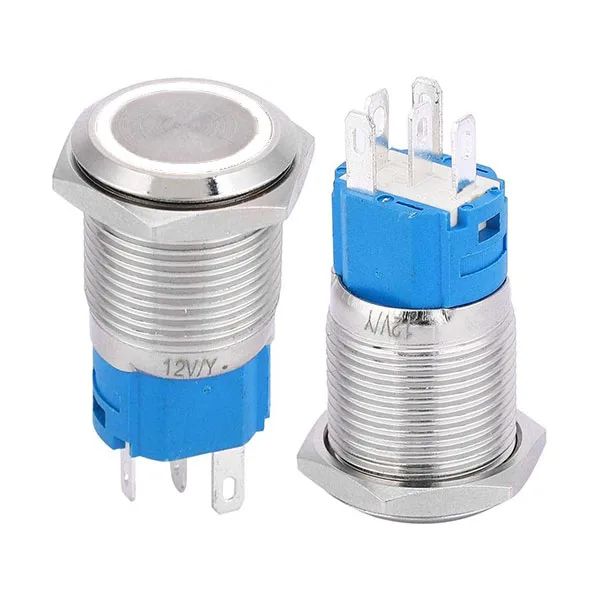

Anti-vandal switch 16 mm - white LED - Image 4
Anti-vandal switch 16 mm - white LED - Image 5

SKU 2846-DEVIATWHIEAN 8219671098540Colour: Silver, WhiteContact configuration: SPSTHole size: 16 mmLighting: LEDSwitch action: ON-OFFItem type: Buttons & switches

Description

Metal anti-vandal switch with OFF/ON action and NC/NO/C contacts (normally open/closed and common), with white LED illumination. The LED runs on 12 VDC and lasts more than 40,000 hours. The contacts take a maximum of 36 VDC/2 A. The operating temperature range is -20°C to +55°C, with humidity of 45-85% RH. Insulation resistance is greater than 1000 Mohm, while contact resistance is less than 50 Mohm. Mechanical life is 20,000 ON/OFF cycles and electrical life is 50,000 cycles. The body is nickel-plated brass, with a Ø 16 mm mounting hole. The protection rating is IP65/IK8 (level of resistance to mechanical impact).
Pinout
Pulsanti serie deviat - pinout

Technical details

Dimensions (mm) Ø 16 (mounting hole) x 35 (length) x 18.8 (nut)
Terminals solder
Contacts NC-NO-C
LED white
