BASIC-Programmable Ethernet Module

Description

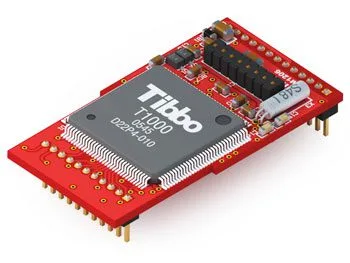

Based on the high-performance 88 MHz T1000 ASIC microcontroller, the TIBBO EM1206 module features a 10/100BaseT auto-MDIX Ethernet port, four high-speed serial ports, 1024 kB flash memory, 2 kB EEPROM, 17 I/O lines (8 of which are interrupt lines), and an RTC. Fully supported by the TIDE software (see “Tibbo BASIC Programming Guide”), the EM1206 can handle Wi-Fi communications (this requires the optional GA1000 module), external LCD display, keyboard, and buzzer.

Features

• Based on the high-performance 88 MHz T1000 ASIC microcontroller
• Optional Wi-Fi interface (requires the optional GA1000 module)
• Four high-speed serial ports (CMOS level):
  – Baud rates up to 921,600 bps
  – None/even/odd/mark/space parity modes
  – 7/8 bits/character modes
  – Full-duplex mode with optional flow control
  – Half-duplex mode with direction control
  – Encoding and decoding of Wiegand and clock/data streams
• Up to 1024 kB flash memory for firmware, applications, and data
• 2 kB EEPROM for data storage
• RTC
• Supports external LCD and keyboard
• Programmable square wave output for external buzzer
• 17 I/O lines (8 of which are interrupt lines)
• Control lines for two external status LEDs
• Four status LEDs:
  – Green and red status LEDs
  – Green and yellow Ethernet status LEDs
• Software-controlled PLL
• Reliable power-on/brown-out reset circuit
• Firmware: upgradeable via serial port or network

Downloads

• Manual EM1206
• Complete technical documentation, hardware and software manuals, as well as all software needed to run Tibbo modules can be downloaded free of charge from the manufacturer’s website: www.tibbo.com
